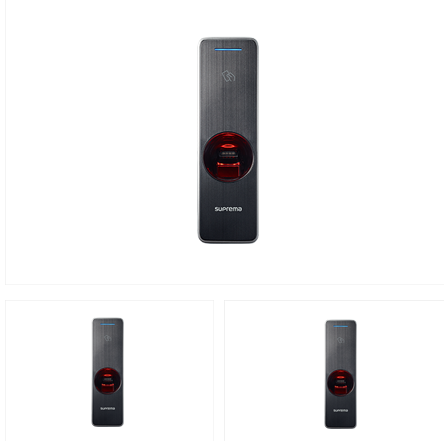

Suprema BioEntry W2 is a rugged fingerprint access control device featuring Suprema’s next generation biometric technology and security platform. BioEntry W2 provides class-leading performance and security by featuring Suprema’s latest fingerprint algorithm coupled by powerful quad-core CPU and LFD(live finger detection) technology. The device also provides added flexibility in system design featuring multi-card support with dual-frequency RFID technology. Packed in a rugged IP67/IK09 housing with sleek metal finish, BioEntry W2 is a perfect access control solution for tough environment and outdoor installation.
- Biometric : Fingerprint
-
Sensor Type : Optical Sensor
(OP5)
-
Template : SUPREMA / ISO 19794-2
/ ANSI 378
-
Extractor / Matcher : MINEX
certified and compliant
- LFD : Supported
- CPU : 1.2 GHz Quad Core
-
Memory : 2GB Flash + 256 MB RAM
-
Max. User (1:1) : 500,000 (Based
on one finger enrollment per user
-
Max. User (1:N) : 100,000 (Based
on one finger enrollment per user)
- Max. Finger per user : 10
- Max. Text Log : 1,000,000
- LCD : Multi-Color
- Sound : Multi-tone Buzzer
-
Ethernet : 10/100 Mbps, auto
MDI/MDI-X
-
RS-485 : 1ch host or slave
(selectable), OSDP V2.1.6
-
Wiegand : 1ch input or output
(selectable)
- TTL : 2ch Input
- Relay : 1 Relay
-
PoE : Supported (IEEE 802.3af
compliant)
- Ingress Protection : IP67
- Impact Protection : IK09
- Tamper : Supported
-
Power : Voltage: DC 12V Current:
Max. 600 mA
-
Operating Temperature : -20°C ~
50°C
-
Operating Humidity : 0% ~ 80%,
non-condensing
-
Dimensions (WxHxD, mm) : 50 x
172 x 43.5
-
Certificates : CE, FCC, KC, RoHS,
REACH, WEEE
Suprema BioEntry W2
Data Sheet
