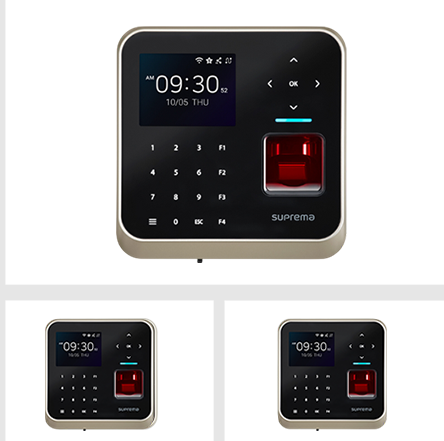

Nedo Corporation presents the Suprema BioStation 2a in Karachi, the world’s first AI-powered fingerprint recognition solution for advanced access control. Equipped with an embedded Neural Processing Unit (NPU), it delivers unparalleled speed and accuracy, even for low-quality fingerprints. With deep learning technology, it enhances security by significantly improving recognition precision and efficiency. Its expanded capacity supports up to 100,000 users while maintaining lightning-fast authentication for enterprise-grade security.
-
RF Option : 125kHz EM
: 125kHz HID Prox
-
RF Read Range : EM/MIFARE/DESFire/HID ICLASS: 50 mm, HID Prox/FeliCa: 30 mm
-
Mobile : NFC, BLE
-
Live Finger Detection : Supported (SW-based)
-
Crypto Chip : Supported
-
Max. User : 500,000
-
Max. Credential (1:N) : Fingerprint: 100,000
-
Max. Credential (1:1) : Fingerprint, Card, PIN: 500,000
-
Max. Text Log : 5,000,000
-
CPU : 1.5 GHz Quad Core
-
Memory : 16 GB Flash + 2 GB RAM
-
LCD : 2.8" color TFT LCD/320 x 240 pixels
-
Wi-Fi : Not Supported
: Supported (802.11 b/g/n 2.4 GHz)
-
Ethernet : Supported (10/100 Mbps, auto MDI/MDI-X)
-
RS-485 : OSDP V2 compliant
-
Wiegand : 1 ch Input, 1 ch Output
-
Input : 3 ch Inputs
-
Relay : 1 Relay
-
USB : USB 2.0 (Host)
-
Tamper : Supported
-
Power : Voltage: 12 Vdc, Current: Max. 0.8 A
-
IP Rating : IP65
-
Operating Temperature : -20°C~60°C (-4°F ~ 140°F)
-
Dimensions (WxHxD) : 142 x 144 x 45 (Bottom)/37.8 (Top) (mm)
-
Certification : CE, UKCA, KC, FCC, RCM, SIG, ROHS, REACH, WEEE
Bio Station 2A
Data Sheet
