Nedo Corporation offers the Suprema CoreStation CS40 in karachi, a high-performance smart door controller designed for enterprise-level access control. Enabling centralized biometric security, it supports up to 500,000 users with lightning-fast fingerprint matching of up to 400,000 matches per second. Seamlessly integrating with the BioStar 2 platform, CoreStation provides advanced authentication, centralized data storage, and real-time access control management. With Ethernet communication and the ability to match credentials across multiple devices simultaneously, it ensures superior security, efficiency and its ideal for large-scale deployments.
-
Model Name : CS-40
-
Crypto Chip : Supported
-
Max. User : 500,000
-
Max. Credential (1:N) : Fingerprint: 100,000, Face: 4,000
-
Max. Credential (1:1) : Fingerprint: 500,000/Face: 30,0003,
Card: 500,000/PIN: 500,000
-
Max. Text Log : 5,000,000
-
CPU : 1.4 GHz Octa-Core
-
Memory : 8 GB Flash + 1 GB RAM
-
RS-485.Communication Protocol : OSDP V2 Compliant
-
Ethernet : Support (10/100 Mbps, Auto MDI/MDI-X)
-
RS-485 : 5 ch
-
Wiegand : 4 ch
-
TTL Input : 8 ch (TTL Input or Supervised input selectable)
-
TTL Output : 8 ch
-
AUX Input : 2 ch (AC POWER FAIL, Tamper)
-
Relay : 4 relays
-
Power : Voltage: 12 Vdc, Current: Max. 3 A
-
Power Output : Voltage: 12 Vdc, Current: Max. 1.5 A
-
Operating Temperature : 0°C~50°C (32°F~122°F)
-
Dimensions (WxHxD) : 150 x 214 x 21
-
Certification : CE, UKCA, KC, FCC, RCM, ROHS, REACH, WEEE

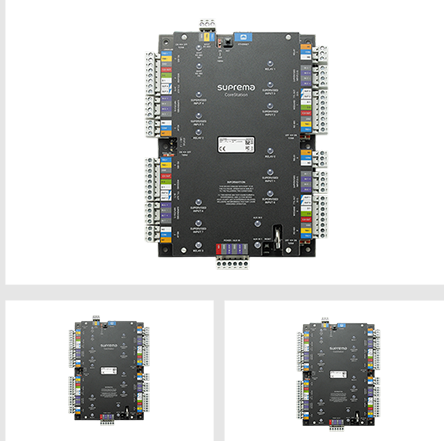

CoreStation CS40
Data Sheet
