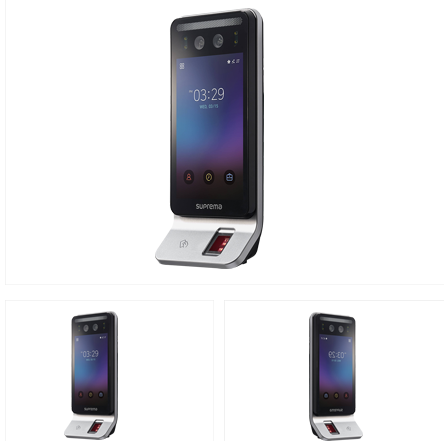

Nedo Corporation offers the advanced Suprema FaceStation F2 Fusion Multimodal Terminal, a cutting-edge biometric solution combining facial recognition and fingerprint authentication for superior security and versatility. Powered by Suprema’s patented fusion matching technology, the FaceStation F2 delivers industry-leading accuracy, even with masks or under varying lighting conditions. Designed for high-performance access control and time attendance, it supports up to 100,000 users and provides ultra-fast recognition speeds. The device features a large 7-inch LCD touchscreen, robust anti-spoofing technology, and comprehensive connectivity options including Wi-Fi, TCP/IP, and RS485. With enterprise-grade encryption and seamless integration capabilities, the FaceStation F2 is ideal for workplaces, government facilities, and high-security environments.
-
Biometric : MIFARE Plus, DESFire
EV1/EV2, FeliCa125kHz EM & 13.56MHz MIFARE,
- Mobile : NFC, BLE
-
CPU : 1.8 GHz Dual Core + 1.4
GHz Quad Core
-
Memory : 16GB Flash + 2GB RAM
-
LCD Type : 7” IPS color LCD
-
LCD Resolution : 800 x 1280
pixels
- Sound : 16bit
-
Operating Temperature : -20°C ~
50°C (-68°F ~ 122°F)
-
Operating Humidity : 0% ~ 80%,
non-condensing
-
Dimension (W x H x D) : (4.7" x
8.8" x 0.9")119.8mm x 223mm x 23.5mm
- Device : 585g
- IP Rating : IP65
-
CPU : 1.4 GHz Quad Core
: 1.4 GHz Quad Core
-
Certificates : CE, FCC, KC, RoHS,
REACH, WEEE
-
Recognition Distance : 0.5m ~
1.3m (19.7" ~ 51.2")
-
Recognition Height : 140cm ~
190cm (55.1" ~ 74.8")
-
Matching Speed : Less than 0.5
sec
-
(Anti-Spoofing)Live Face Detection
: Supported
-
Image Dimension : 300 x 400
pixels
- Resolution : 500 dpi
-
Template : SUPREMA / ISO19794-2,
ANSI-378
-
Extractor / Matcher : MINEX
certified and compliant
-
Sensor Certificates : FBI PIV and
FBI Mobile ID FAP20
-
Live Fingerprint Detection :
Supported (SW-based)
-
Ethernet : 10/100 Mbps, auto
MDI/MDIX
-
RS-485 : 1ch Host or Slave
(Selectable)
-
Wiegand : 1ch Input or Output
(Selectable)
- TTL Input : 2ch Inputs
- Relay : 1 Relay
- USB : USB 2.0 (Host)
- Tamper : Supported
