High Dynamic Contrast Range Projectors – Maxell MC-WU5501 Projector

Discontinued

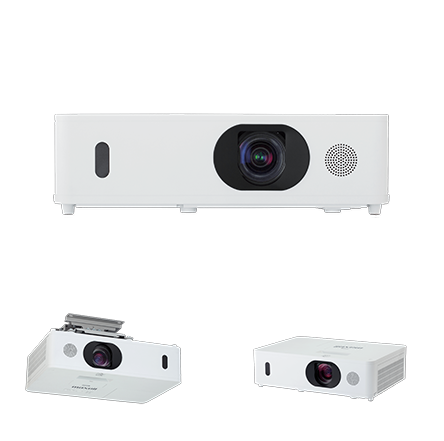

Nedo Corporation presents the Maxell MC-WU5501, a high-performance projector featuring exceptional dynamic contrast range. With its advanced 3LCD technology and WUXGA resolution, the MC-WU5501 delivers sharp, vibrant visuals with deeper blacks and brighter whites, ensuring a more immersive viewing experience. The projector’s impressive brightness of 5,500 lumens ensures clear images even in well-lit environments, making it ideal for large meeting rooms, conference halls, and classrooms. Offering versatile connectivity options like HDMI, VGA, and USB, the Maxell MC-WU5501 integrates easily with a variety of devices. With reliable performance and long lamp life, this projector is perfect for professional settings that require top-notch image quality and dynamic contrast.

Discontinued

This model has been discontinued by the manufacturer and is no longer available.

Recommended Replacement:

Epson Projectors

5,200 ANSI Lumens white/color output
WUXGA 1920 x 1200 Resolution
1.4 – 2.3 : 1

Projection Technology : 3LCD, 3 chip technology
Resolution : WUXGA – 1920 x 1200
Brightness : 65,200 ANSI lumens
Colors : 16.7 million colors
Aspect Ratio : Native 16:10, 4:3, 16:9, 14:9 and zoom compatible
Contrast Ratio : 10,000 : 1 (using active IRIS)
Focus Distance (distance : width) : 33" – 597"
Display Size (distance : width) : 30" – 300"
Lens : f = 19.8 – 33.9, x 1.7 manual zoom, focus & lens shift
Lens Shift : Manual (V: 0 ~ 56.5%, H: +/- 4.6%)
Expected Filter Life** : Approximately 10,000 hours
Speaker Output : 16W
Keystone : H and V: +/- 30°
Computer : VGA/SVGA/XGA/WXGA/SXGA/WXGA/WXGA+/WXGA++/ WSXGA+/HD/UXGA/Mac 16
H-Sync : 15 kHz – 106 kHz
V-Sync : 50 Hz – 120 Hz
Composite Video : NTSC, NTSC4.43, PAL, PAL-M, -N, SECAM
Component Video : 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
HDMI : 480i, 480p, 576i, 576p, 720p, 1080i, 1080p Computer signal TMDS clock 25 MHz – 162 MHz 4K (3840 x 2160p@24/25/30, 4096 x 2160p@24)* *HDMI1 and HDBaseT only
Digital Input : HDMI x 2
Computer Input 1 : 15-pin mini D-sub x 11
Computer Input 2 : 15-pin mini D-sub x 1
Computer Monitor Output : 15-pin mini D-sub x 1
Composite Video Input : RCA jack x 1
Component Video Input : 15-pin mini D-sub x 2 (shared with computer in 1/2)
Audio Input : 3.5mm stereo mini jack x 2, RCA jack (L/R) x 1
Audio Output : 3.5mm stereo mini jack x 1
Network (LAN) Wired : RJ-45 port (10 base-T / 100 base-TX)
Network (LAN) Wireless : UUSB-A, IEEE802.11 a/b/g/n/ac – optional wireless adapter required
Control Terminals : 9-pin D-sub x 1 (RS-232 control)
Wired Remote Control : 3.5 mm stereo mini jack (IN/OUT)
USB : Type A x 1 (wireless network)
Power Supply : AC 100-120V/220-240V, 50/60Hz
Power Consumption : 440W / 420W
Operating Temperature : 32° – 104° (0°C – 40°C) under 5,250 ft. 32° – 95° (0°C – 35°C) 5,250 ft. – 10,000 ft.
Dimensions (W x D x H) : 19.9" x 16.7" x 5.3" (excluding protrusions)
Weight : Approximately 14 lbs.
Approvals : UL 60950-1 / cUL, FCC Part 15 subpart B class A
