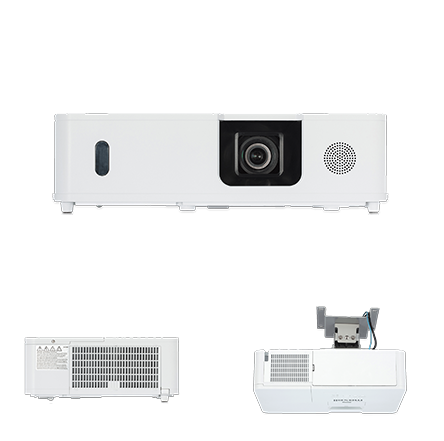

Maxell 3LCD Projectors – Maxell MC-WX5505 Projector

Discontinued

Nedo Corporation presents the Maxell MC-WX5505, a high-quality 3LCD projector designed to deliver vibrant and crisp visuals for professional settings. Featuring WXGA resolution and an impressive brightness of 5,500 lumens, the MC-WX5505 ensures clear, detailed images even in well-lit rooms. The advanced 3LCD technology provides excellent color accuracy and high contrast, making it perfect for meetings, classrooms, and large conference spaces. With versatile connectivity options like HDMI, VGA, and USB, this projector easily integrates with various devices for a seamless presentation experience. The Maxell MC-WX5505 is a reliable and long-lasting solution, offering exceptional performance for any professional environment.

Discontinued

This model has been discontinued by the manufacturer and is no longer available.

Recommended Replacement:

Epson Projectors

5,200 ANSI lumens white/color output
WXGA 1280 x 800
1.4 – 2.3 :1 Throw Ratio

Projection Technology : 3LCD, 3 chip technology
Resolution : WUXGA – 1920 x 1200
Brightness : 5,200 ANSI lumens
Colors : 16.7 million colors
Aspect Ratio : Native 16:10, 4:3, 16:9, 14:9 and zoom compatible
Contrast Ratio : 10,000 : 1 (using active IRIS)
Focus Distance (distance : width) : 32" – 580"
Display Size (distance : width) : 30" – 300"
Lens : f = 19.8 – 33.9, x 1.7 manual zoom, focus & lens shift
Lens Shift : Manual (V: 0 ~ 56.5%, H: +/- 4.6%)
Expected Filter Life** : Approximately 10,000 hours
Speaker Output : 16W
Keystone : H and V: +/- 30°
H-Sync : 15 kHz – 106 kHz
V-Sync : 50 Hz – 120 Hz
Composite Video : NTSC, NTSC4.43, PAL, PAL-M, -N, SECAM
Component Video : 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
HDMI : 480i, 480p, 576i, 576p, 720p, 1080i, 1080p Computer signal TMDS clock 25 MHz – 162 MHz 4K (3840 x 2160p@24/25/30, 4096 x 2160p@24)* *HDMI1 and HDBaseT only
Digital Input : HDMI x 2
Computer Input 1 : 15-pin mini D-sub x 11
Computer Input 2 : 15-pin mini D-sub x 1
Computer Monitor Output : 15-pin mini D-sub x 1
Composite Video Input : RCA jack x 1
Component Video Input : 15-pin mini D-sub x 2 (shared with computer in 1/2)
Audio Input : 3.5mm stereo mini jack x 2, RCA jack (L/R) x 1
Audio Output : 3.5mm stereo mini jack x 1
Network (LAN) Wired : RJ-45 port (10 base-T / 100 base-TX)
Network (LAN) Wireless : UUSB-A, IEEE802.11 a/b/g/n/ac – optional wireless adapter required
Control Terminals : 9-pin D-sub x 1 (RS-232 control)
Wired Remote Control : 3.5 mm stereo mini jack (IN/OUT)
USB : Type A x 1 (wireless network)
Power Supply : AC100-120V / AC220-240V, 50/60Hz
Power Consumption : 440W / 420W
Operating Temperature : 32° – 104° (0°C – 40°C) under 5,250 ft. 32° – 95° (0°C – 35°C) 5,250 ft. – 10,000 ft.
Dimensions (W x D x H) : 18.1" x 13.1" x 5.4" (excluding protruding parts)
Weight : Approximately 14 lbs.
Approvals : UL 60950-1 / cUL, FCC Part 15 subpart B class A
