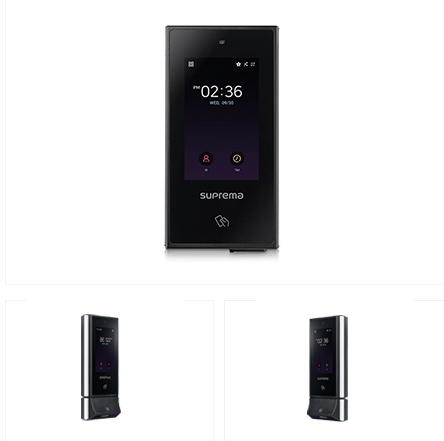

Introducing the Suprema X-Station 2, a state-of-the-art
intelligent Card Reader terminal offered by Nedo
Corporation in Karachi. It supports a wide range of
credentials, including QR codes, Mobile Access, RFID
cards, and industry-leading fingerprint recognition. Built
with advanced security features such as a secure boot
process, Open Supervised Device Protocol (OSDP), and
integrated cameras for image logs, the X-Station 2 ensures
robust data protection and enhanced system security. Its
4” intuitive touchscreen, Power over Ethernet (PoE), and
IP65 rating make it exceptionally user-friendly, reliable,
and easy to maintain, ideal for modern access control
solutions.
-
RF Option : 125 kHz EM & 13.56
MHz MIFARE, MIFARE Plus, DESFire, DESFire
EV1/EV2/EV3(1), FeliCa
-
RF read range(2) : MIFARE,
DESFire, iCLASS, HID Prox, EM: 50 mm / Felica: 30 mm
- Mobile Card : NFC, BLE
- Biometrics : Fingerprint
- CPU : 1.5 GHz Quad Core
-
Memory : 16 GB Flash + 1 GB RAM
- Crypto Chip : Supported
- Max. User : 500,000(5)
-
Max. logs : Text 5,000,000 /
Image 50,000
-
LCD : 4" IPS color LCD / 480 x
800 pixels
-
Camera : CMOS 2M pixels / 1600 x
1200
-
Ethernet : 10/100 Mbps, auto
MDI/MDI-X
-
RS-485 : 1 ch Host or Slave
(Selectable)
-
Wiegand : 1 ch Input or Output
(Selectable)
- TTL Input : 2 ch Inputs
- Relay : 1 Relay
- USB : USB 2.0 (Host)
-
PoE : IEEE 802.3af compliant
-
Power : Voltage: 12 Vdc, Current:
Max. 0.8 / Voltage: 24 Vdc, Current: Max. 0.5 A
-
Dimensions (W x H x D, mm) : 82 x
159 x 25.9
-
Operating Temperature : -20°C ~
50°C (-4°F ~ 122°F)
-
Certificates : CE, UKCA, KC, FCC,
IC, RCM, BIS, ANATEL, SIG, TELEC, RoHS, REACH, WEEE
(XS2-DPB, QDPB, APB, QAPB) CE, UKCA, KC, FCC, IC, RCM,
BIS, ANATEL, SIG, RoHS, REACH, WEEE (XS2-ODPB, OAPB)
