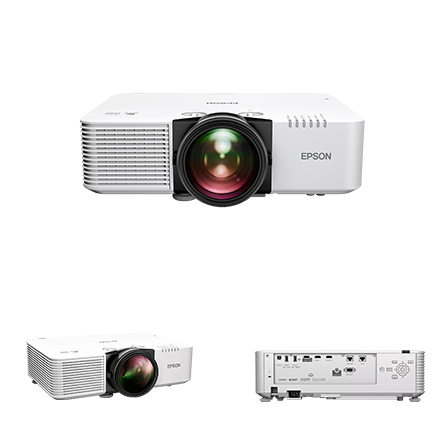

Short Throw Projector for Business & Education - Epson EB‑L690SU


Short Throw Projector for Business & Education - Epson EB‑L690SU


eb-l690su

Redefining high-impact projection for modern spaces, Nedo Corporation proudly presents the Epson EB‑L690SU, a cutting-edge short-throw laser projector designed for performance, flexibility, and sustainability. With a powerful 6,200 lumens of equal color and white brightness and crisp WUXGA resolution, it delivers ultra-bright, sharp visuals—even in fully lit environments—on screens up to 400 inches. The projector’s 0.79–1.36:1 throw ratio, 1.6× optical zoom, and generous lens shift ensure hassle-free installation in tight or unconventional spaces. Powered by a durable laser light source lasting up to 30,000 hours in Eco mode, it’s built for long-term, maintenance-free operation. Its wide connectivity options—including dual HDMI, HDBaseT, Wi-Fi, and Miracast—support seamless integration into any AV system. With smart features like edge blending, split-screen display, and geometric correction, the EB-L690SU offers unmatched versatility for business, education, and digital signage applications.


  • 6,200 lumens color/white brightness1
  • WUXGA for clear, detailed images
  • 0.79 to 1.36 throw ratio and 1.7x optical zoom
  • Display up to 400" diagonal in 16:10, plus ultra wide 16:6 and 21:9
  • Lightweight, compact design allows for easy installation
  • AirPlay 2 supported
  • Optional Wireless Capability
  • Projection Technology  :   RGB liquid crystal shutter projection system (3LCD)
  • White Light Output (Normal/Eco)   :   6,200lm / 4,340lm
  • Network   :   Wired LAN: RJ45 x 1 (100Mbps), Wireless LAN: Built-in
  • Contrast Ratio   :   Over 5,000,000:1
  • Screen Size   :   80” diagonal 1.37m - 2.34m
  • Laser Type   :   Laser Diode 41.9 mW (Output)
  • Light Source Life   :   Up to 20,000 hours (ECO Mode)*2
  • Dimension Excluding Feet (W x D x H)   :   440 x 304 x 122 mm
  • Power Supply Voltage   :   100 - 240 V AC ±10%, 50/60 Hz
  • Weight   :   Approx. 8.9kg
pdf

EB‑L690SU

Data Sheet
