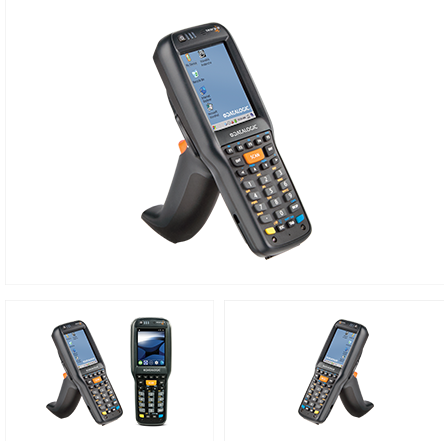

The Skorpio™ X4 mobile computer features a high
performance multi-core 1 GHz architecture that offers
blazing speed when running Windows Embedded Compact (WEC7)
OS and allows easy migration to Android™ models. Users
will never run out of memory with the standard 1 GB RAM
and 8 GB Flash.
Equipped with the largest high-visibility 3.2 inch color
display touch screen in its class, the Skorpio X4 mobile
computer helps users work more efficiently. Three
different keyboards are available for maximum efficiency:
a 50-key alphanumeric keypad, a 38-key functional keypad
and a 28-key numeric keypad.
The enhanced Wi-Fi now supports 802.11 a/b/g/n with MIMO
antennas for maximum coverage. Bluetooth® v4.0 extends the
capabilities for short range communications.
-
Large high visibility color display with touch screen
-
Choice of 1D or 2D imagers featuring Datalogic’s
patented ‘Green Spot’ technology for good-read feedback
-
Wide Band Audio for improved speech recognition
(Android™ only)
-
Choice of Microsoft Windows Embedded Compact 7 or
Android v4.4 operating systems
-
TI 802.11 a/b/g/n radio with CCX v4 and featuring MIMO
antenna technology
-
Bluetooth wireless technology v4.0 with BLE (low energy)
on Android models
- 1.8 m / 6.0 ft drop resistance
- IP64 protection class
- Attachable handle (and orderable pre-installed)
-
EASEOFCARE Service Plans offer a wide range of service
options to protect your investment, ensuring maximum
productivity and ROI
-
LOCAL AREA NETWORK (WLAN) : TI
Wi-Link 8, IEEE 802.11a/b/g/n; Frequency Range: Country
dependent, typically 2.4 and 5 GHz; Cisco Compatible CCX
v4 Security
-
PERSONAL AREA NETWORK (WPAN) :
Bluetooth v4 with BLE (Android models); Bluetooth v2.1 +
EDR (WEC7 models)
-
2D IMAGER (STANDARD RANGE)
: Megapixel sensor for extended
range; White LED Illumination Optical Resolution: 1D
codes: 3 mils; 2D codes: 6.6 mils Depth of Field
(typical): 4.5 to 74 cm / 1.7 to 29.1 in (13 mil/EAN),
depending on bar code density and type
-
1D IMAGER : 2500 pixel sensor;
Sharp green LED scan line Optical Resolution: 2.5 mils
(linear codes) Depth of Field: 4.0 to 74 cm / 1.5 to
29.1 in (13 mil/EAN), depending on bar code density and
type
-
1D / LINEAR CODES : Auto
discriminates all standard 1D codes including GS1
DataBar™ linear codes.
-
2D CODES : Aztec Code, Data
Matrix, MaxiCode, PDF417, MicroPDF417, Micro QR Code, QR
Code
-
POSTAL CODES : Australian Post,
Japanese Post, KIX Code, Royal Mail, USPS Intelligent
Mail, USPS PLANET, USPS POSTNET
-
BATTERY : Removable battery pack
with rechargeable LiIon batteries; MicroUSB for fast
battery charging Standard: 3.7 V; 3,000 mAh (11.1
Watt-hours); standard on all handheld models Extended:
3.7 V; 5,200 mAh (19.2 Watt-hours); standard on all
Pistol Grip models
-
APPLICATIONS : Pal Application
Library pre-licensed (WEC7 only)
