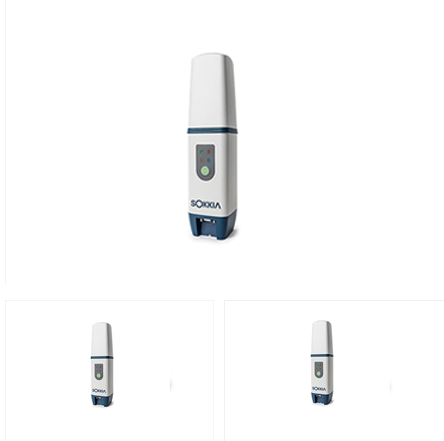

Sokkia GNSS Receiver in Pakistan - GCX3 GNSS System


Sokkia GNSS Receiver in Pakistan - GCX3 GNSS System


We’ve taken our already revolutionary GCX3 and delivered even more flexibility and functionality to meet the needs of your customers. Improvements include the addition of BeiDou and Galileo tracking capability, longer range base-to-rover communication, and never-seen-before performance in tree canopy situations. The GCX3 may look similar to the previous model but both the receiver board and the antenna element have been updated. Try it and see the difference. The GCX3 is the ideal local jobsite base/rover RTK (Real Time Kinematic) system or Network RTK rover. And like all of our products, you can customize it to meet your needs and create your own workflows.


  • Number of Channels   :   226 channels
  • Antenna Type   :   Integrated antenna
  • Maximum Data Rate   :   10 Hz
  • Memory   :   Internal non-removable memory up to 8GB
  • Real Time Data Output   :   TPS, RTCM SC104 v2.x, 3.x and MSM, CMR/CMR+*
  • Communication Ports   :   Bluetooth® USB 2.0 High Speed Device
  • Dust/Water Rating   :   IP67
  • Humidity   :   100%, condensing
  • Operating Temperature   :   -20°C to 63°C (with internal batteries) / -40°C to 63°C (with external power)
  • Display Type   :   LED user interface
  • Dimensions (w x h x l)   :   47 x 197 x 47 mm
  • Weight (including batteries)   :   440 g
  • Battery Type   :   Internal non-removable
  • Operating Time   :   All day operation in any configuration (up to 10 hours)

Sokkia GCX-3

Data Sheet
