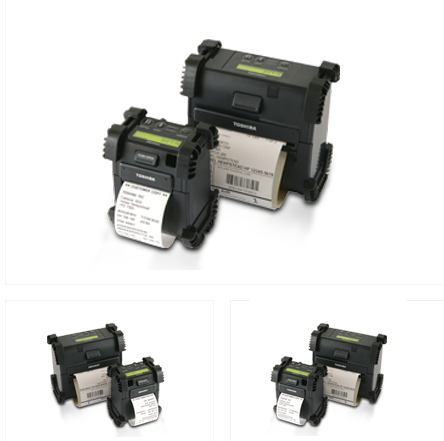

The Toshiba B-EP4DL is a rugged, ultra-compact 4-inch direct-thermal mobile printer engineered for on-the-go labeling. It delivers a sharp 203 dpi resolution and a fast print speed up to 105 mm/s (4.13 ips) to keep up with field operations. Equipped with 8 MB Flash ROM and 16 MB SRAM, it offers ample memory for efficient job handling. The device supports wide label media (48–115 mm) and long print lengths (up to 995 mm), minimizing roll changes. Connectivity is flexible, with USB, IrDA, Bluetooth, and Wireless LAN options. A backlit LCD and keypad make it easy to operate, while an IP54-rated optional case protects it in harsh environments.
- Ultra-Compact 4" Direct Thermal Portable Printer
- 203 dpi Print Resolution, Up to 4.1" per Second
- 8MB Flash Memory and 16MB SD-RAM
-
Flexible Connectivity: Serial, USB, Bluetooth and
Wireless LAN
- Keypad with Backlit LCD
- High-Endurance Li-Ion Battery
- Easy Operation for Paper Loading
- MSRP Starts at $1,095
-
Technology : Direct Thermal
- Resolution : 203 dpi
-
Media Pitch : 1 original + 3
copies
-
MICR & Accuracy : Min. 10.0 mm
(0.39") : Max. 999.0 mm (39.3")
-
Barcodes : UPC/EAN/JAN, Code39,
Code93, Code128, EAN128, NW7, MSI, Industrial 2 of 5,
ITF, Postnet, RM4SCC, KIX-Code, GS1Databar, Customer Bar
Code, Highest Priority Customer Barcode, Matrix 2 of 5
-
2D Codes : Data Matrix, PDF 417,
Maxicode, QR code, Micro PDF 417
-
Fonts : Bitmap Font (21 fonts),
Outline Font (4 types), Price Font (3 types), Writable
Characters
-
Options : Battery, Shoulder
Strap, 1 & 6 Slot Chargers, Upgrade Interface Kit
(Bluetooth, Wireless LAN) for GH20 Model, IP54 Rated
Carry Case, Linerless Label Kit, AC & DC Adapters
-
Dimensions (W x D x H) : 5.9" x
5.71" x 3.03"
- Weight : 1.9 Lbs.
Toshiba B-EP4DL
Data Sheet
