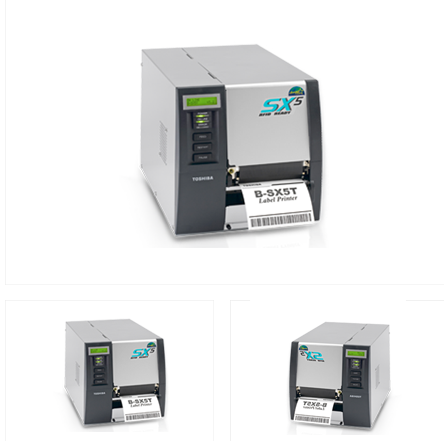

The Toshiba B-SX5 is a high-performance industrial printer that supports both thermal-transfer and direct-thermal printing. It delivers crisp output at a 306 dpi (12.05 dots/mm) resolution — ideal for fine text, barcodes, and graphics. The printer can output at speeds up to 203 mm/s (8 ips) while handling a wide media width of up to 127.5 mm. Built-in ribbon-save functionality helps to reduce ribbon waste and costs during thermal-transfer jobs. Connectivity is flexible, with 2 serial ports, a bi-directional parallel port, and optional USB, LAN, PCMCIA, or wireless interfaces. The robust steel design (weighing ~19 kg) and long-life near-edge printhead (up to 76 km) make it well-suited for continuous, high-volume industrial environments.
- High-Performance 5" Thermal Printer
- 305 dpi Print Resolution, Up to 8" per Second
- 8MB Flash Memory and 32MB SD-RAM
- Standard Serial, Parallel, and I/O Port
- SNMP Capability
- RFID Ready
- Near-Edge Print Head Technology
- Standard Ribbon Save
- MSRP Starts at $2,950
-
Technology : Thermal Transfer /
Direct Thermal
- Resolution : 305 dpi
-
Media Pitch : Min. 10.0 mm
(0.39")
-
Media Width (w/backing paper) :
Min. 30.0 mm (1.18")
-
Print Speed : Up to 203.2 mm/s
(8 ips)
-
Interfaces : 2 Serial Port,
Bi-Directional Parallel Port, Expansion I/O, Opt. USB,
Opt. LAN, Opt. Wireless LAN, Opt. PCMCIA I/F
-
Barcodes : UPC/EAN/JAN, Code39,
Code93, Code128, EAN128, NW7, MSI, Industrial 2 of 5,
ITF, Postnet, RM4SCC, KIX-Code, GS1Databar, Customer Bar
Code
-
2D Codes : Data Matrix, PDF 417,
Maxicode, QR code, Micro PDF 417, CP Code
-
Fonts : Bitmap Font (21 fonts),
Outline Font (4 types), Price Font (3 types), Writable
Characters, Opt. True Type Font (20 types)
-
Options : Swing Cutter Module,
Rotary Cutter Module, USB Interface, Built-In LAN Board,
Wireless LAN Board, PCMCIA I/F Board, Fanfold Paper
Guide, RFID Kit
-
Dimensions (W x D x H) : 11.5" x
18.1" x 12.1"
- Weight : 41.9 Lbs.
