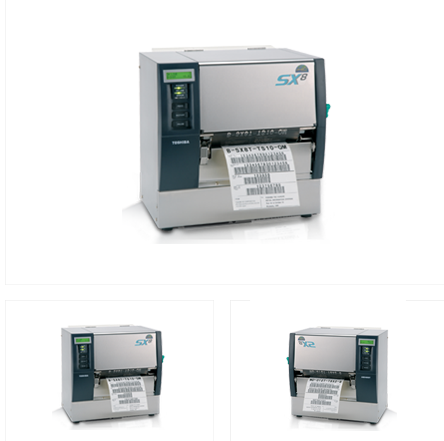

The Toshiba B‑SX8T is a high‑throughput 8‑inch (213.3 mm) industrial thermal printer that supports both thermal‑transfer and direct‑thermal printing. It delivers 305 dpi resolution using a near‑edge print head, producing crisp barcodes and text, and operates at speeds up to 203 mm/s (8 ips). With 16 MB Flash and 16 MB SDRAM, it can handle large print jobs and complex label formats. It supports a wide media range (roughly 101.6 mm to 225 mm) and long print lengths up to 1,364 mm, making it perfect for large-format industrial or compliance labels. Connectivity options include parallel, USB 2.0, and 10/100Base-T Ethernet, plus optional serial, I/O expansion, cutter, and wireless LAN. Its rugged metal design and built‑in ribbon‑save function help reduce costs and enhance reliability in demanding environments.
- High-Performance Industrial 8" Thermal Printer
- 305 dpi Print Resolution, Up to 8" per Second
- 16MB Flash Memory and 16MB SD-RAM
- Standard Parallel, LAN, and USB Port
- SNMP Capability
- Standard Ribbon Save
- Near-Edge Print Head Technology
- MSRP Starts at $5,000
-
Technology : Thermal Transfer /
Direct Thermal
- Resolution : 305 dpi
-
Media Pitch : Min. 10.0 mm
(0.39")
-
Media Width (w/backing paper) :
Min. 101.6 mm (4.0")
-
Print Speed : Up to 203.2 mm/s
(8 ips)
-
Interfaces : Bi-Directional
Parallel Port, USB2.0 Port, LAN (10/100Base), Opt.
Serial Port, Opt. Expansion I/O, Opt. Wireless LAN
-
Barcodes : UPC/EAN/JAN, Code39,
Code93, Code128, EAN128, NW7, MSI, Industrial 2 of 5,
ITF, Postnet, RM4SCC, KIX-Code, GS1Databar, Customer Bar
Code
-
2D Codes : Data Matrix, PDF 417,
Maxicode, QR code, Micro PDF 417, CP Code
-
Fonts : Bitmap Font (21 fonts),
Outline Font (4 types), Price Font (3 types), Writable
Characters, Opt. True Type Font (20 types)
-
Options : Cutter Module, Strip
Module, Wireless LAN Board, Serial Interface Board,
Expansion I/O Board, RTC (Real Time Clock)
-
Dimensions (W x D x H) : 16.4" x
11.4" x 15.6"
- Weight : 55.2 Lbs.
Toshiba B-SX8T
Data Sheet
