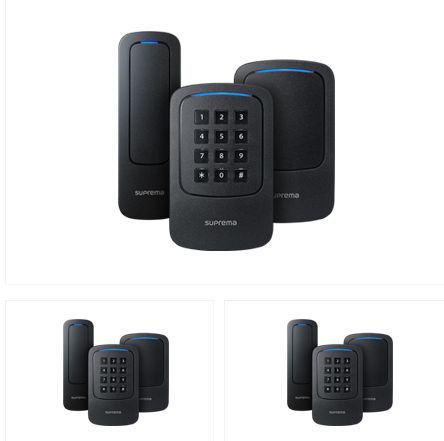

XPass D2 is an outdoor compact RFID reader based on Suprema's state-of-the-art RFID technology and multi-hardware platform, optimized for centralized access control systems such as Suprema's CoreStation. Using multi-form factor technology, mullion-type, gangbox-type and gangbox keypad-type are all supported. With dual-frequency (125kHz / 13.56MHz) RFID technology, XPass D2 also supports mobile cards using NFC and BLE, the latest mobile communication technologies. Packed in a rugged IP65/IP67 rated dust & waterproof performance as well as IK08 rated vandal-proof structure, suitable for tough environments and outdoor installations.


  • RF Option   :  125KHz EM, Wiegand Format Card & 13.56MHz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa
  • Mobile Card   :   NFC, BLE
  • Ingress Protection   :   IP65, IP67
  • Vandal Proof   :   IK08
  • CPU   :   80 MHz
  • Memory   :   256 KB Flash + 64 KB RAM
  • LCD Type   :  Not supported
  • LED   :   Multiple colors
  • Sound   :  Multi-tone Buzzer
  • Operating Temperature   :  -35°C ~ 65°C
  • Storage Temperature   :   -40°C ~ 70°C
  • Operating Humidity   :  0% ~ 95%, non-condensing
  • Storage Humidity   :  0% ~ 95%, non-condensing
  • Weight   :  Device: 117g, Bracket: 30g (Including washer and bolt)
  • Dimension (WxHxD, mm)   :  48 x 144.7 x 27
  • Tamper   :  Supported
  • Wi-Fi   :  Not supported
  • Ethernet   :  Not supported
  • RS-485   :  1ch Slave
  • Wiegand   :  1ch
  • TTL Input   :  Not supported
  • Relay   :  Not supported
  • USB   :  Not supported
  • SD Card   :  Not supported
  • PoE   :  Not supported
  • Intercom   :  Not supported
  • Power   :  DC 12 V
