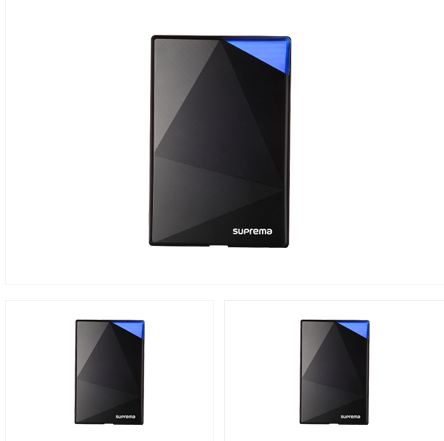

IP RFID Device - Suprema Xpass S2


The Suprema XPass S2 is an advanced IP-based RFID access control reader designed for robust performance in both indoor and outdoor environments. Featuring a sleek, compact design and an IP65-rated weatherproof enclosure, the XPass S2 is built to withstand harsh conditions, making it ideal for a wide range of installations. It supports dual-frequency RFID (125kHz EM & 13.56MHz MIFARE/DesFire) and mobile credentials via NFC, offering flexible and secure authentication options. With a powerful processor, fast data processing, and seamless integration with Suprema’s BioStar 2 platform, the XPass S2 ensures reliable access control and easy system scalability for enterprise-level deployments.


  • RF Card   :  13.56MHz ISO14443A/B, ISO15693, Mifare, Desfire(CSN), Felica
  • User Capacity   :   50,000
  • Log Capacity   :   100,000
  • Network Interfaces   :   TCP/IP, RS485
  • Wiegand   :   In or Out (Switchable)
  • TTL I/O   :   2 x Input
  • Relay   :  1 x Output
  • CPU   :   32-bit Microprocessor (533Mhz)
  • Memory   :  16MB Flash + 16MB SDRAM
  • Indicator   :  Multi-color LED
  • Sound   :   Multi-tone Buzzer
  • Ingress Protection   :  IP65
  • Operating Temperature   :  -35୅ - 65୅
  • Tamper   :  Optical Tamper
  • Operating Voltage   :  12V DC (Max. 300mA)
  • Dimensions (mm)   :  80(W) x 120(H) x 11.4(D)
  • Certificates   :  CE, FCC, MSIP (KCC), IP65, RoHS, REACH, WEEE

Suprema Xpass S2

Data Sheet
