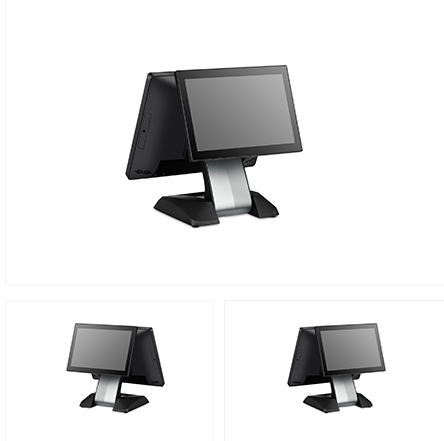

Z800 Fanless PCT Pos Terminal


Cloud Z series Z800 Fanless PCT Pos terminal comes with a Unique “Z” type foldable system design. It is easy to adjust the system angle. It's Packing save more than 25% compared with the normal system. Its body is made with Full Aluminum die Casting back cover with copper heat pipe. Advance DDR4 technology gives plus efficiency for total performance.


  • System Memory   :   DDR4, SO-DIMM x 1, 4GB (Max. 16GB)
  • Storage   :   HDD (500GB 2.5”x 1)
                        SSD (SSD x 1 Optional)
  • Size  :   15" TFT LCD Panel
  • Brightness   :   300cd/m2 (Typ.)
  • Resolution   :   1024 x 768
  • Touch Screen   :   True-Flat Projected Capacitive Touch
  • Tilt Angle   :   0 ~ 120 degree
  • Speaker   :   2 x 2W speaker (Optional)
  • EMC Safety   :   CE, FCC
  • Operating Temperature   :   0°C ~ 35°C
  • Storage Temperature   :   -15°C ~ 60°C
  • OS Support   :   Windows10
  • Dimension (W x D x H)   :   505*180*417
  • Weight (N.W./G.W.)   :   4.6KGS/6.3KGS
  • Scanner   :   2D
  • Customer display   :   Flush mount VFD display, 2x20 characters
  • 2nd Display   :   VGA,12.1" (1280*800)

Z800 Fanless PCT Pos Terminal

Data Sheet
