2D Desktop Barcode Scanner - Cloud CS5500


2D Desktop Barcode Scanner - Cloud CS5500


cs5500-barcode-scanner

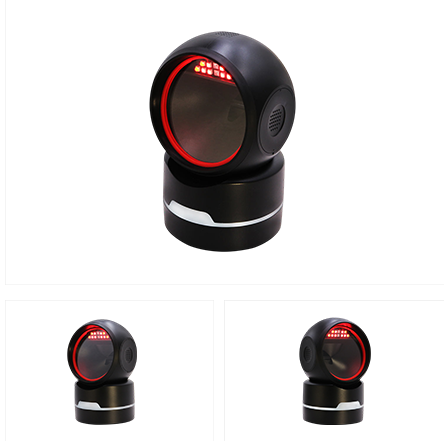

The Cloud CS5500 is a powerful 2D desktop barcode scanner from nedo corporation, built to deliver fast and efficient scanning at retail stores, supermarkets, pharmacies, and POS counters. Its hands-free design allows automatic detection and scanning of items, reducing waiting time and improving overall checkout speed. Powered by advanced imaging technology, it supports a wide range of 1D and 2D barcode formats such as QR codes, Data Matrix, and PDF417. It easily reads barcodes from printed labels, product packaging, coupons, membership cards, and even mobile screens, offering reliable performance and flexibility for modern business environments.


  • Image Sensor: CMOS 640*480
  • Light Source: Red LED + Infrared LED
  • Scan Angle: Skew ±60°, Pitch ±60°, Roll 360°
  • Resolution: ≥3.9 mil
  • Minimum Print Contrast : ≥20%
  • Interface: USB / RS232
  • Voltage: 5 VDC ± 5%
  • Net Weight (approx.): 260g
  • Color: Black/White
  • Country Keyboard Layout: Multiple Country Keyboard Layout
  • Indicator: LED, Beeper
  • Operating Temperature: 0°C to 50°C
  • USB Cable: Data Transfer & Power Supply
pdf

Cloud CS5500

Data Sheet
