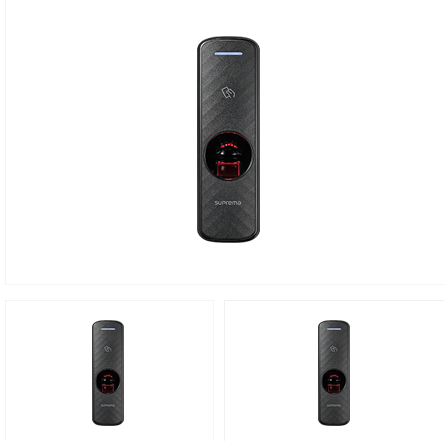

Suprema BioEntry R2 is a Compact RFID card & Fingerprint
Reader exclusively designed for centralized access control
systems. Packed in a slim, mullion-type design, BioEntry
R2 provides high-definition fingerprint image capture,
minutiae extraction as well as dual-frequency multi RF
card reading capability. Combined with Suprema’s
intelligent biometric controller, the CoreStation,
BioEntry R2 completes biometrics-driven access control
system with enhanced simplicity and level of security of
centralized system topology.
- Biometric : Fingerprint
-
Sensor Type : Optical Sensor
(OP6)
-
Template : SUPREMA / ISO 19794-2
/ ANSI 378
-
Extractor / Matcher : MINEX
certified and compliant
-
RF Option : 125kHz EM & 13.56MHz
MIFARE : MIFARE Plus,
DESFire/EV1, FeliCa, NFC
- CPU : 1.0 GHz
-
Memory : 32MB Flash + 32MB RAM
- LED : Multi-Color
- Sound : Multi-tone Buzzer
-
RS-485 : 1ch Slave, OSDP V2.1.6
- Tamper : Supported
- Power : DC 12V
-
Operating Temperature : -20°C ~
50°C
-
Operating Humidity : 0% ~ 80%,
non-condensing
-
Dimensions (WxHxD, mm) : 50 x
164 x 37.5
- Weight : 158g
-
Certificates : Certificates
