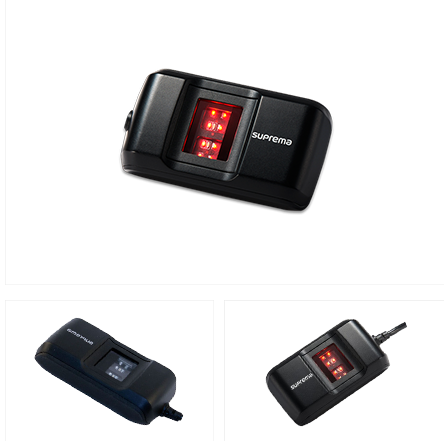

BioMini Slim 2 is FAP20 certified fingerprint scanner
featuring an array of cutting-edge technologies. Along
with its 13.5mm slim optical sensor, BioMini Slim 2
features Suprema’s proprietary Multi-dynamic Range(MDR)
technology, FBI PIV and Mobile ID FAP20 compliance and
Android device support. BioMini Slim 2 also provides
developers more physical flexibility with its reduced form
factor and the ultra-slim optical sensor ensures robust
operation over time. BioMini Slim provides new and
advanced Live Finger Detection (LFD) technology by
applying a machine learning method that analyzes and
categorizes image patterns according to optical
characteristics.
- High speed interface USB 2.0 Plug & Play
- Fingerprint optical sensor 500 dpi
- Auto-on Function
- Scratch free sensor surface
- IP65 protection water and dust proof
-
BioMini SDK for easy application software development
- Life Finger Detection (LFD) function
- Works under direct sunlight up to 100,000 Lux
-
FBI PIV/FIPs 201 and FBI Mobile ID FAP20 certificates
-
Also available OEM finish for integration, SFU-S20
module
- Sensor Type: Optical
- Resolution / Gray Scale: 500 ppi / 256 levels
- Platen Size: 16.5 x 21.0 mm
- Sensing Area: 15.2 x 20.3 mm
- Image Size: 300 x 400 pixels
-
Image Certificate: FBI PIV and FBI Mobile ID FAP 20
- Template Format: Suprema, ISO19794-2, ANSI 378
- Image Format: RAW, BMP, WSQ, ISO 19794-4
- Live Fingerprint Detection: Supported
- IP Rating: IP65(Sensor Surface)
- USB: 2.0 High Speed
- Operating Temperature: -10 ~ 50°C
- Operation Humidity: 0 ~ 90% RH
-
Certification: CE, FCC, KC, RoHS, CB, WEEE, REACH, WHQL
- Dimensions (W x L x H): 72.8 x 40.7 x 18.5 mm
- Weight: 91g
-
Operating System: Windows XP, Vista, 7, 8, 8.1, 10
32/64bit
- Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit
- Android 4.1(Jelly Bean) and Above
Suprema BioMini Slim 2
Data Sheet
