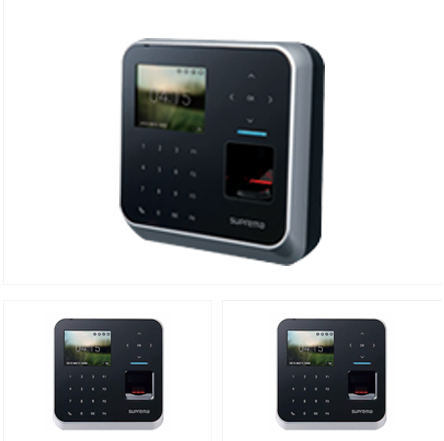

BioStation 2 incorporates the latest Suprema technology in a beautiful exterior. It combines a new powerful processor, Suprema’s next generation optical sensor and improved fingerprint sensing & capturing algorithm to offer unrivaled performance. BioStation 2 provides users with instant authentication and rapid data transfer to manage high volume data with ease. It is ideal for applications that require versatility without compromise in style and performance.


  • RF Option   :   125kHz EM  :  125kHz HID Prox
  • Mobile Card   :   Not supported   :   Not Supported
  • Ingress Protection   :   IP65   :   IP65
  • Vandal Proof   :   Not supported   :   Not supported
  • Template   :   SUPREMA / ISO 19794-2 / ANSI 378   :   SUPREMA / ISO 19794-2 / ANSI 378
  • Extractor / Matcher   :   MINEX certified and compliant  :   MINEX certified and compliant
  • Live Face Detection   :   Supported   :   Supported
  • Users (1:1)   :   500,000   :   500,000
  • Users (1:N)   :   20,000   :   20,000
  • Max. Face per User   :   10   :   10
  • Text Log   :   3,000,000   :   3,000,000
  • Image Log   :   Not supported   :   Not supported
  • CPU   :   1.0 GHz Quad Core   :   1.0 GHz Quad Core
  • Memory   :   8GB Flash + 256MB RAM   :  8GB Flash + 256MB RAM
  • LCD Type   :   2.8” color TFT LCD   :   2.8” color TFT LCD
  • LED   :   Multiple colors   :   Multiple colors
  • Sound   :   16-bit   :   16-bit
  • Operating Temperature   :   -20°C ~ 50°C   :   -20°C ~ 50°C
  • Storage Temperature   :   -40°C ~ 70°C   :   -40°C ~ 70°C
  • Operating Humidity   :   0% ~ 80%, non-condensing   :   0% ~ 80%, non-condensing
  • Storage Humidity   :   0% ~ 90%, non-condensing   :   0% ~ 90%, non-condensing
  • Weight   :   Device: 440g, Bracket: 130g (Including washer and screw)   :   Device: 440g, Bracket: 130g (Including washer and screw)
  • Dimension (WxHxD, mm)   :   142 x 145 x 45   :   142 x 145 x 45
  • Tamper   :   Supported   :   Supported
  • Wi-Fi   :   Built-in, IEEE 802.11 b/g   :   Built-in, IEEE 802.11 b/g
  • Ethernet   :   10/100 Mbps, auto MDIX   :   10/100 Mbps, auto MDIX
  • RS-485   :   1ch Host or Slave (Selectable)   :   1ch Host or Slave (Selectable)
  • Wiegand   :   1ch Input, 1ch Output   :   1ch Input, 1ch Output
  • TTL Input   :   2ch Inputs   :   2ch Inputs
  • Relay   :   1 Relay   :   1 Relay
  • USB   :   USB 2.0 (Host)   :   USB 2.0 (Host)
  • SD Card   :   Not supported   :   Not supported
  • PoE   :   IEEE 802.3af compliant   :   IEEE 802.3af compliant
  • Intercom   :   Supported   :   Supported
  • Power   :   DC 12V   :   DC 12V
