Line Thermal Printer - Cloud CTP50L


ctp-50l

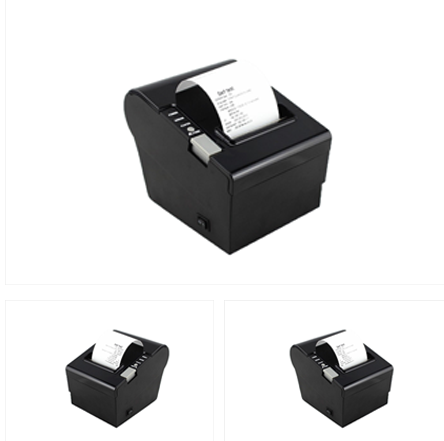

The Cloud CTP50L is a robust 80 mm (≈ 72 mm effective width) direct-thermal receipt printer designed for high-volume retail and hospitality environments. It delivers a maximum print speed of 300 mm per second, with a resolution of 8 dots/mm (576 dots per line) to ensure sharp text and barcode output. The paper path supports “drop-in” loading and accommodates rolls up to 80 mm diameter (core diameter minimum ≈ 13 mm) with a paper thickness of around 0.06–0.07 mm. With support for ANSI alphanumeric and Chinese character sets (GB18030), and a heavy-duty design boasting a Mean Cycles Between Failures (MCBF) of 60 million lines, the CTP50L meets demanding POS system requirements. Standard interfaces include RS-232, USB and Ethernet, making integration into existing point-of-sale systems straightforward. Whether for supermarkets, convenience stores, or restaurant check-outs, the CTP50L offers fast, reliable printing that keeps queues moving and operations smooth.


  • Printing Method yet Thermal Line
  • Printing Speed yet 300mm/s
  • Resolution therefore 8 dots/mm, 576 dots/line
  • Effective yet Printing Width 72mm
  • Character Set hence ANK,GB18030(Chinese)
  • Drop-in yet paper load
  • Print Font ANK yet 12 x24,9×17, Chinese: 24 x 24
  • Paper Width therefore size 79.5± 0.5mm
  • Roll Diameter hence Max: 80.0mm
  • Paper Thickness yet 0.06 to 0.07mm
  • MCBF 60 hence million lines
  • Paper Near therefore Sensor, Paper End Sensor
  • Paper Type Thermal therefore paper
