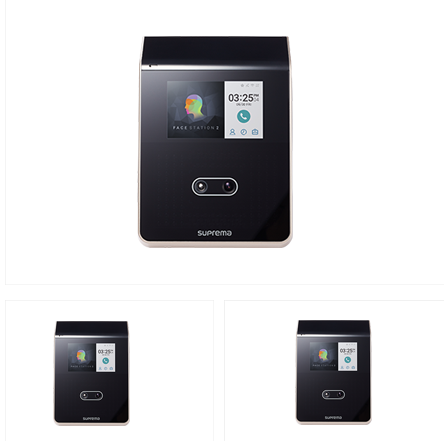

Suprema FaceStation 2 is the most advanced face
recognition terminal providing loads of the world’s best
features. Powered by Suprema’s latest innovation in facial
biometrics, FaceStation 2 offers unrivalled matching
speed, accuracy and level of security. With Suprema’s
patented optic engineering, FaceStation 2 achieves up to
25,000 lx of operating illuminance which in turn, brings
all-round confidence regardless of lighting conditions.
Packed in an ergonomically-designed structure, FaceStation
2 provides exceptional performance and usability for
diverse access control and time attendance sites, large or
small.
-
RF Option : 125kHz EM & 13.56Mhz
MIFARE, MIFARE Plus, DESFire/EV1, FeliCa :
125kHz EM, HID Prox & 13.56Mhz MIFARE, MIFARE Plus,
DESFire/EV1, FeliCa, iCLASS SE/SR/Seos
-
Mobile Card : NFC
: NFC, BLE
-
Ingress Protection : Not
supported : Not supported
-
Vandal Proof : Not supported
: Not supported
-
Template : Suprema
: Suprema
-
Extractor / Matcher :
Suprema : Suprema
-
Live Face Detection : Supported
: Supported
-
Users (1:1) : 30,000
: 30,000
-
Users (1:N) : 3,000
: 3,000
-
Max. Face per User : 5
: 5
-
Text Log : 5,000,000
: 5,000,000
-
Image Log : 50,000
: 50,000
-
CPU : 1.4 GHz Quad Core
: 1.4 GHz Quad Core
-
Memory : 8GB Flash + 1GB RAM
: 8GB Flash + 1GB RAM
-
LCD Type : 4” color TFT LCD
: 4” color TFT LCD
-
LED : 800 x 480 pixels
: 800 x 480 pixels
-
Sound : 24 bit Voice DSP (echo
cancellation) : 24 bit Voice DSP
(echo cancellation)
-
Operating Temperature : -20°C ~
50°C : -20°C ~ 50°C
-
Storage Temperature : -40°C ~
70°C : -40°C ~ 70°C
-
Operating Humidity : 0% ~ 80%,
non-condensing : 0% ~ 80%,
non-condensing
-
Storage Humidity : 0% ~ 90%,
non-condensing : 0% ~ 90%,
non-condensing
-
Weight : Device: 548g Bracket:
74g (Including washer and bolt)
: Device: 548g Bracket: 74g
(Including washer and bolt)
-
Dimension (WxHxD, mm) : 141 x
164 x 125 : 141 x 164 x 125
-
Tamper : Supported
: Supported
-
Wi-Fi : Not supported
: Built-in, IEEE 802.11 b/g
-
Ethernet : 10/100/1000 Mbps,
auto MDI/MDI-X : 10/100/1000
Mbps, auto MDI/MDI-X
-
RS-485 : 1ch Host or Slave
(Selectable) : 1ch Host or Slave
(Selectable)
-
Wiegand : 1ch Input, 1ch Output
: 1ch Input, 1ch Output
-
TTL Input : 2ch Inputs
: 2ch Inputs
-
Relay : 1 Relay
: 1 Relay
-
USB : USB 2.0 (Host)
: USB 2.0 (Host)
-
SD Card : Not supported
: Not supported
-
PoE : Not supported
: Not supported
-
Intercom : Supported
: Supported
-
Power : DC 24 V
: DC 24 V
Face Station 2
Data Sheet
