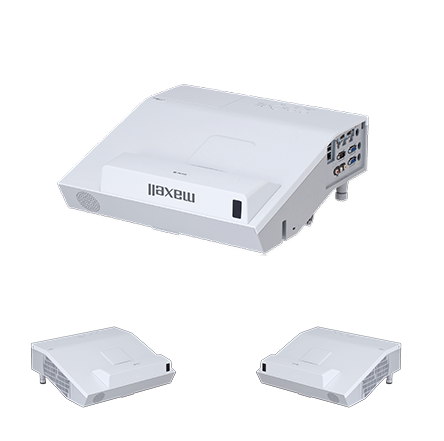

HD Ultra-Short Throw Projectors – Maxell MC-AX3506 Projector


HD Ultra-Short Throw Projectors – Maxell MC-AX3506 Projector


Nedo Corporation offers the Maxell MC-AX3506 HD Ultra-Short Throw Projector, an advanced solution designed to deliver high-quality projections in space-constrained environments. With its ultra-short throw technology, this projector can produce large, vibrant images from just a few inches away, making it ideal for classrooms, conference rooms, and meeting spaces. Featuring HD resolution (1280x800 WXGA), it ensures clear, sharp visuals for presentations, lessons, and collaborative work. The 5,000 lumens brightness guarantees bright, vivid images even in well-lit rooms, while the interactive functionality enables users to engage directly with content using interactive pens.


  • 3,600 ANSI lumens white/color output
  • XGA 1024 x 768 resolution
  • 0.2 : 1 from edge of projector to screen 0.3 : 1 from mirror cover to screen
  • Projection Technology   :   3LCD, 3 chip technology
  • Resolution   :   XGA – 1024 x 768
  • Focus Distance   :   15" – 26" from mirror cover to screen
  • Display Size   :   60" – 100"
  • Lens   :   f = 4.21 mm
  • HDMI   :   480i, 480p, 576i, 720p, 1080i, 1080p, Computer signal TMDS clock 27 MHz – 150 MHz
  • Composite Video   :   NTSC, NTSC4.43, PAL, PAL-M, -N, SECAM
  • Component Video   :   480i, 480p, 576i, 720p, 1080i, 1080p
  • Weight   :   Approximately 9.4 lbs
  • Control Terminals   :   9-pin D-sub x 1 (RS-232 control)
  • Power Supply   :   AC90-132V / AC198-264V, 50/60Hz
  • Power Consumption   :   360W
  • USB   :   Type A x 2 (PC-less presentation, wireless adapter) Type B x 1 (USB display or mouse control)

MC-AX3506

Data Sheet
