Projector ceiling mounts from Projector Ceiling Mounts Direct (PCMD) LLC. offers the consumer a quality ceiling mount at a fraction of the cost of others on the market. This projector ceiling mount can be rotated 360
degrees, and pitched and rolled in any direction. Max Tilt: +/- 80 degrees. The mounting plate is CNC machined for precise fitment and made from 6061-T6 aircraft grade aluminum. Unlike universal ceiling mounts,
our projector ceiling mounts are specifically designed for your projector. This ensures proper hanging of the projector by utilizing minimal projector coverage as well as leaving adequate space for heat to escape.
All the necessary hardware is included to install the ceiling mount onto your drywall ceiling or wooden beam and projector. Detailed instructions are also included for a quick and easy installation. This mount style
sets the projector approximately 14 inches from the ceiling.

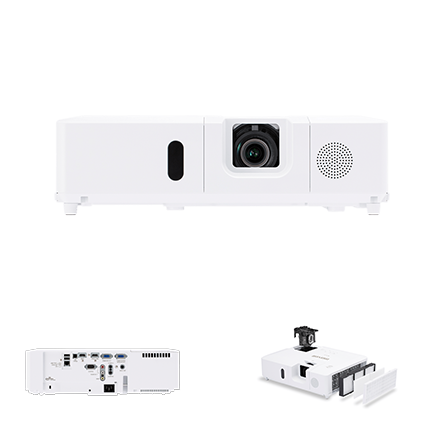

- 5,000 ANSI Lumens White/Color Output
- WUXGA 1920 x 1200 Resolution
- 1.3 – 2.1 : 1 Throw Ratio
- Projection Technology : 3LCD, 3 chip technology
- Resolution : WUXGA 1920 x 1200
- White Light Output : 5,000 ANSI lumens
- Color Light Output : 5,000 ANSI lumens
- Colors : 1.07 billion colors
- Color : ICR
- Aspect Ratio : Native 4:3 and 16:9 / 16:10 / 14:9 zoom compatible
- Contrast Ratio : 16,000 : 1 (using active IRIS)
- Throw Ratio (distance : width) : 1.3 – 2.1 : 1
- Focus Distance : 30" – 537"
- Display Size : 30" – 300"
- Lens : f = 18.2 – 29.4 mm, x 1.6 manual zoom and focus
- Lamp Wattage : 280W
- Expected Lamp Life : Approximately 4,500 hours (Standard mode) 6,000 hours (Eco mode)
- Expected Filter Life : Approximately 10,000 hours
- Speaker Output : 16W
- Keystone : H and V: +/- 30°
- Computer : VGA, SVGA, XGA, WXGA, SXGA, WSXGA+, HD, UXGA, WUXGA, MAC 16"
- H-Sync : 15 kHz – 106 kHz
- USB : Type A x 2 (PC-less presentation or wireless adapter) Type B x 1 (USB display or remote control mouse)
- Power Supply : AC100-120V / AC220-240V, 50/60Hz
- Power Consumption : 410W / 400W
- Operating Temperature : 41°F – 95°F (5°C – 35°C)
- Weight : Approximately 11.9 lbs
- Approvals : UL 60950-1 / cUL, FCC Part 15 subpart B class A
- Network (LAN) Wireless : USB-A, IEEE802.11 a/b/g/n/ac – optional wireless adapter required
- Audio Input : 3.5mm stereo mini jack x 2, RCA jack (L/R) x 1s
