Maxell MC-TW3506 – Ultra Short Throw Projector for Classroom in Karachi, Lahore, Islamabad

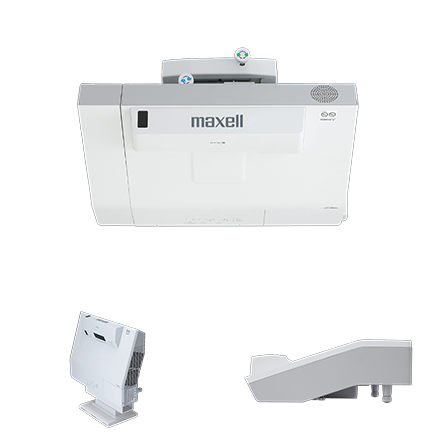

Maxell MC-TW3506


The innovative interactive MC-TW3506 features an ultra short throw design and integrates Maxell’s powerful software to deliver a complete interactive experience on any flat surface. With a rich feature set that meets the specific interactive needs of K-12, higher education, and corporate users, the MC-TW3506 is both easy to install and easy to calibrate. It provides vibrant image quality with cost-effective operation and produces large images in small spaces. New generation interactive features include interactive pen, multiple pen capability, auto-calibration, PC-less drawing, and multi-display interactive. If you purchase the optional Finger Touch Module (FT01B), the MC-TW3506 supports interactive with Finger Touch.


  • 3,700 ANSI lumens white/color output
  • WXGA 1280 x 800 resolution
  • 0.2 : 1 from edge of projector to screen
  • 0.3 : 1 from mirror cover to screen
  • Projection Technology   :   3LCD, 3 chip technology
  • Resolution   :   WXGA 1280 x 800
  • Focus Distance   :   16" – 27" from mirror cover to screen
  • Display Size   :   60" – 100"
  • Lens   :   f = 4.21 mm, digital zoom x 1.35, powered focus
  • HDMI   :   480i, 480p, 576i, 576p, 1080i, 1080p, computer signal TMDS clock 27 MHz – 150 MHz
  • Composite Video   :   NTSC, NTSC4.43, PAL, PAL-M, -N, SECAM
  • Component Video   :   480i, 480p, 576i, 576p, 1080i, 1080p
  • Weight   :   Approximately 10.1 lbs
  • Control Terminals   :   9-pin D-sub x 1 (RS-232 control)
  • Power Supply   :   AC100-120V / AC220-240V, 50/60Hz
  • Power Consumption   :   380W/360W
  • USB   :   Type A x 2 (PC-less presentation, wireless adapter) Type B x 1 (USB display or mouse control)

MC-TW3506

Data Sheet
