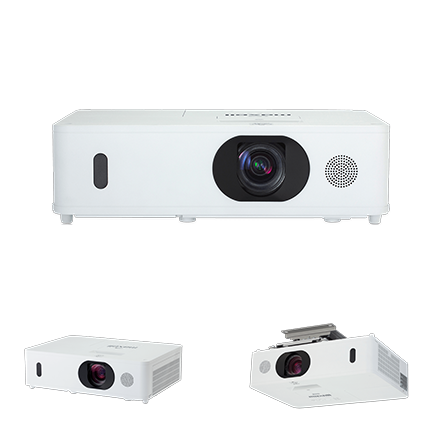

Maxell MC-WU5505

The MC-WU5505 is easily stackable which enables you to place one projector on top of another to project the same image from both onto a screen for added brightness. Incorporating Maxell’s leading-edge technology, the MC-WU5505 features an image-enhancing combination of Accentualizer, High Dynamic Contrast Range (HDCR) and Image Optimizer, all of which contribute to the overall visual experience. Plus, Maxell’s Intelligent Eco and Saver Modes with ImageCare combines optimal picture performance with maximum energy savings for a lower cost of ownership. For added peace of mind, Maxell’s MC-WU5505 is also backed by a generous warranty and our world-class service and support programs.

5,200 ANSI lumens white/color output
WUXGA 1920 x 1200 resolution
1.4 – 2.3 : 1

Projection Technology : 3LCD, 3 chip technology
Resolution : WUXGA – 1920 x 1200
Brightness : 5,200 ANSI lumens
Colors : 16.7 million colors
Aspect Ratio : Native 16:10 / 4:3, 14:9 and 16:9 compatible compatible
Contrast Ratio : 10,000 : 1 (using active IRIS)
Focus Distance (distance : width) : 33" – 597"
Display Size (distance : width) : 30" – 300"
Lens : f = 18.2 – 29.2 mm, x 1.6 manual zoom, focus and lens shift
Lens Shift : Manual (V: 0 ~ 56.5%, H: +/- 4.6%)
Expected Filter Life** : Approximately 10,000 hours
Speaker Output : 16W
Keystone : H and V: +/- 30°
Computer : VGA/SVGA/XGA/WXGA/SXGA/WXGA/WXGA+/WXGA++/ WSXGA+/HD/UXGA/Mac 16
H-Sync : 15 kHz – 106 kHz
V-Sync : 50 Hz – 120 Hz
Composite Video : NTSC, NTSC4.43, PAL, PAL-M, -N, SECAM
Component Video : 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
HDMI : 480i, 480p, 576i, 576p, 720p, 1080i, 1080p Computer signal TMDS clock 25 MHz – 162 MHz 4K (3840 x 2160p@24/25/30, 4096 x 2160p@24)* *HDMI1 and HDBaseT only
Digital Input : HDBaseT x 1, HDMI x 2 (HDCP Compliant)
Computer Input 1 : 15-pin mini D-sub x 11
Computer Input 2 : 15-pin mini D-sub x 1
Computer Monitor Output : 15-pin mini D-sub x 1
Composite Video Input : RCA jack x 1
Component Video Input : 15-pin mini D-sub x 2 (shared with computer in 1/2)
Audio Input : 3.5mm stereo mini jack x 2, RCA jack (L/R) x 1
Audio Output : 3.5mm stereo mini jack x 1
Network (LAN) Wired : RJ-45 port (10 base-T / 100 base-TX)
Network (LAN) Wireless : UUSB-A, IEEE802.11 a/b/g/n/ac – optional wireless adapter required
Control Terminals : 9-pin D-sub x 1 (RS-232 control)
Wired Remote Control : 3.5 mm stereo mini jack (IN/OUT)
USB : Type A x 1 (wireless network)
Power Supply : AC100-120V / AC220-240V, 50/60Hz
Power Consumption : 440W / 420W
Operating Temperature : 32° – 104° (0°C – 40°C) under 5,250 ft. 32° – 95° (0°C – 35°C) 5,250 ft. – 10,000 ft.
Dimensions (W x D x H) : 19.9" x 16.7" x 5.3" (excluding protrusions)
Weight : Approximately 14 lbs.
Approvals : UL 60950-1 / cUL, FCC Part 15 subpart B class A
