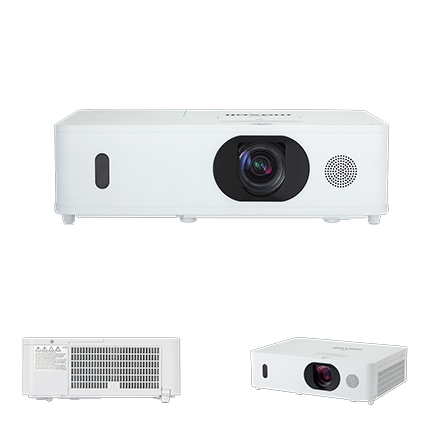

Maxell MC-WU5506M

As part of Maxell’s Collegiate Series, the MC-WU5506M combines WUXGA 1920 x 1200 resolution with super-bright 5,200 ANSI lumens white/color light output for a stunning visual achievement. It can transform classrooms, lecture halls, and auditoriums into true learning centers. The MC-WU5506M enhances meetings and presentations by wirelessly mirroring high quality contents from your Miracast® compatible devices. Incorporating Maxell's leading-edge technology, the MC-WU5506M features an image-enhancing combination of Accentualizer, High Dynamic Contrast Range (HDCR) and Image Optimizer, all of which contribute to the overall visual experience. Plus, Maxell’s Intelligent Eco and Saver Modes with ImageCare combines optimal picture performance with maximum energy savings for a lower cost of ownership. For added peace of mind, Maxell’s MC-WU5506M is also backed by a generous warranty and our world-class service and support programs.

5,200 ANSI lumens white/color output
WUXGA 1920 x 1200 resolution
1.4 – 2.3 : 1

Projection Technology : 3LCD, 3 chip technology
Resolution : WUXGA 1920 x 1200
White Light Output : 5,200 ANSI lumens
Colors : 1.07 billion colors (HDMI/HDBaseT/Computer/Video input with Frame Lock on)
Aspect Ratio : Native 16:10 / 4:3, 14:9, 16:9 and Zoom compatible
Contrast Ratio : 10,000 : 1 (using active IRIS)
Throw Ratio (distance : width) : 1.4 – 2.3 : 1
Lens : f = 19.8 – 33.9, x 1.7 manual zoom, focus & lens shift
Lamp Wattage : 300W
Expected Lamp Life* : Approximately 4,000 hours (standard mode) 6,000 hours (Eco mode)
Expected Filter Life** : Approximately 10,000 hours
Speaker Output : 16W
Keystone : H and V: +/- 30°
Computer : VGA, SVGA, XGA, WXGA/WXGA+/WXGA++, SXGA/SXGA+, UXGA, WUXGA, Mac16"
H-Sync : 15 kHz – 106 kHz
V-Sync : 50 Hz – 120 Hz
Composite Video : NTSC, NTSC4.43, PAL, PAL-M, -N, SECAM
Component Video : 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
HDMI : 480i, 480p, 576i, 576p, 720p, 1080i, 1080p Computer signals TMDS clock 25 MHz -162 MHz
Digital Input : HDBaseT x 1, HDMI x 1, HDMI/MHL x 1
Computer Input 1 : 15-pin mini D-sub x 1
Computer Input 2 : 15-pin mini D-sub x 1
Computer Monitor Output : 15-pin mini D-sub x 1
Composite Video Input : RCA jack x 1
Component Video Input : 15-pin mini D-sub (shared with computer input)
Audio Input : 3.5mm stereo mini jack x 1, RCA jack (L/R) x 1
Audio Output : 3.5mm stereo mini jack x 1
Network (LAN) Wired : RJ-45 port (10 base-T / 100 base-TX)
Network (LAN) Wireless : USB-A, IEEE802.11 a/b/g/n/ac (with USB-WL-5G)
Control Terminals : 9-pin D-sub x 1 (RS-232 control)
Wired Remote Control : 3.5 mm stereo mini jack x 1
USB : Type A x 1 for wireless adapter (behind the filter cover) Type A x 1 for firmware upgrade
Power Supply : AC 100-120V/220-240V, 50/60Hz
Power Consumption : 470W / 450W
Operating Temperature : 332°F – 95°F (0°C-35°C) (Standard mode) 32°F – 104°F (0°C-40°C) (Eco Mode)
Dimensions (W x D x H) : 18.1" x 13.1" x 4.8" (excluding protruding parts)
Weight : Approximately 16 lbs.
Approvals : UL 60950-1 / cUL, FCC Part 15 subpart B class A
