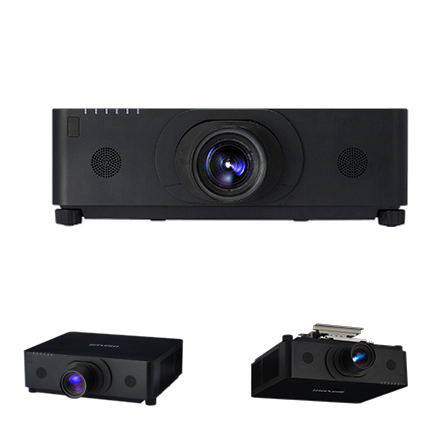

Maxell’s installation-friendly MC-WU8701B LCD projector is
designed to provide maximum presentation impact in mid to
large venue applications. It offers a versatile array of
innovative, performance-enhancing features along with
advanced video display technology providing bold,
brilliant colors with incredible image clarity and
uniformity. The MC-WU8701B incorporates original Maxell
technology Accentualizer, HDCR, Image Optimizer and Color
Management to deliver outstanding picture quality and
visibility. Plus, with motorized zoom, focus and superior
lens shift, a variety of lens options, 360º display
rotation and status monitor, the MC-WU8701B is at the top
of its class when it comes to installation flexibility.
All this, and with a lower cost of ownership. For added
peace of mind, Maxell’s MC-WU8701B is also backed by a
generous warranty and our world-class service and support
programs.
- 7,000 ANSI lumens white/color output
- WUXGA 1920 x 1200 resolution
- 1.7 – 2.9 : 1
-
Projection Technology : 3LCD, 3
chip technology
-
Resolution : WUXGA – 1920 x 1200
-
White Light Output : 7,000 ANSI
lumens
-
Color Light Output : 7,000 ANSI
lumens
-
Colors : 16.7 million colors
-
Aspect Ratio : Native 16:10 /
4:3, 14:9 and 16:9 compatible
-
Contrast Ratio : 10,000 : 1
(using active IRIS)
-
Throw Ratio (distance : width) :
Specifications will vary depending on which lens is used
with the projector
-
Focus Distance : 43.3" – 1480.3"
- Display Size : 30" – 600"
-
Lens : f = 1.6 – 2.0 mm, x 1.7
motorized zoom, focus and lens shift (with ML713)
- Lamp Wattage : 430W
-
Expected Lamp Life* :
Approximately 2,000 hours (standard mode), 4,000 hours
(Eco mode), 1,000 hours (portrait mode)
-
Expected Filter Life** :
Approximately 20,000 hours
-
Speaker Output : 16W (8W x 2
stereo)
-
Keystone : H and V: +/- 5º (with
standard lens)
-
Computer : VGA, SVGA, XGA, WXGA,
WXGA+/SXGA/SXGA+/WSXGA+/ UXGA/WUXGA, MAC 16"
- H-Sync : 15 kHz – 106 kHz
- V-Sync : 50 Hz – 120 Hz
-
Composite Video : NTSC,
NTSC4.43, PAL, PAL-M, -N, SECAM
-
Component Video : 480i, 480p,
576i, 720p, 1080i, 1080p
-
HDMI : 480i, 480p, 576i, 720p,
1080i, 1080p, Computer signal TMDS clock 27 MHz – 150
MHz
-
Operating Temperature : 32°F –
113°F (0°C – 45°C)
-
Dimensions (W x D x H) : 19.6" x
16.8" x 6.1" (without lens)
-
Weight : Approximately 24.5 lbs.
-
Approvals : UL 60950-1 / cUL,
FCC Part 15 subpart B class A
