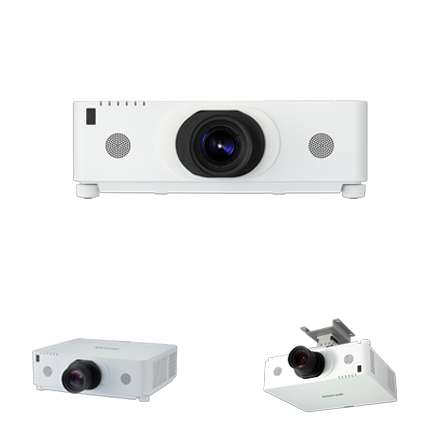

The Maxell MC-WU8701W is a high-performance WUXGA 3LCD projector that delivers stunning image quality with 6000 lumens of brightness, making it perfect for bright rooms and large spaces. With a contrast ratio of 5000:1, it provides sharp, vibrant visuals, ideal for presentations, videos, and detailed images. The projector features multiple connectivity options and flexible installation, ensuring easy setup and integration into various setups. The long-lasting lamp life of up to 20,000 hours reduces maintenance costs and enhances reliability. Whether for meetings, classrooms, or events, the Maxell MC-WU8701W offers outstanding performance and versatility to meet your projection needs.
- 7,000 ANSI Lumens white/color output
- WUXGA 1920 x 1200 Resolution
- 1.7 – 2.9 : 1
-
Projection Technology : 3LCD, 3
chip technology
-
Resolution : WUXGA – 1920 x 1200
-
White Light Output : 7,000 ANSI
lumens
-
Color Light Output : 7,000 ANSI
lumens
-
Colors : 16.7 million colors
-
Aspect Ratio : Native 16:10 /
4:3, 14:9 and 16:9 compatible
-
Contrast Ratio : 10,000 : 1
(using active IRIS)
-
Throw Ratio (distance : width) :
Specifications will vary depending on which lens is used
with the projector
-
Focus Distance : 43.3" – 1480.3"
- Display Size : 30" – 600"
-
Lens : Specifications will vary
depending on which lens is used with the projector (This
model ships without a lens)
- Lamp Wattage : 430W
-
Expected Lamp Life* :
Approximately 2,000 hours (standard mode), 4,000 hours
(Eco mode), 1,000 hours (portrait mode)
-
Expected Filter Life** :
Approximately 20,000 hours
-
Speaker Output : 16W (8W x 2
stereo)
-
Keystone : H and V: +/- 5º (with
standard lens)
-
Computer : VGA, SVGA, XGA, WXGA,
WXGA+/SXGA/SXGA+/WSXGA+/ UXGA/WUXGA, MAC 16"
- H-Sync : 15 kHz – 106 kHz
- V-Sync : 50 Hz – 120 Hz
-
Composite Video : NTSC,
NTSC4.43, PAL, PAL-M, -N, SECAM
-
Component Video : 480i, 480p,
576i, 720p, 1080i, 1080p
-
HDMI : 480i, 480p, 576i, 720p,
1080i, 1080p, Computer signal TMDS clock 27 MHz – 150
MHz
-
Digital Input : HDMI x 2,
HDBaseT x 1, Display Port x 1, SDI x 1
-
Computer Input : 15-pin mini
D-sub x 1
-
Operating Temperature : 32°F –
113°F (0°C – 45°C)
-
Dimensions (W x D x H) : 19.6" x
16.8" x 6.1" (without lens)
-
Weight : Approximately 24.5 lbs.
-
Approvals : UL 60950-1 / cUL,
FCC Part 15 subpart B class A
