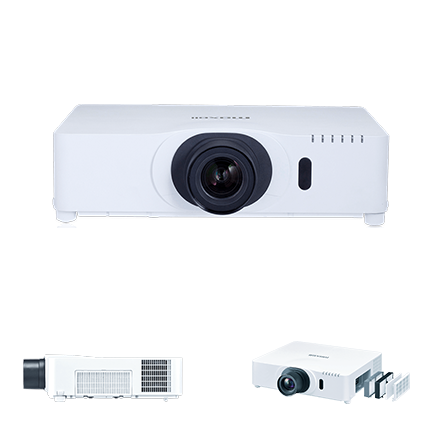

WXGA 3LCD Conference Room Projectors – Maxell MC-WX8265 Projector

Nedo Corporation presents the Maxell MC-WX8265, a high-quality WXGA (1280x800) projector designed for corporate, educational, and professional settings. With an impressive 5000 lumens brightness, it delivers crisp, vibrant visuals even in well-lit environments. Featuring advanced 3LCD technology, the projector ensures accurate color reproduction and excellent image clarity. Its versatile connectivity options, including HDMI, VGA, and wireless support, make it perfect for a wide range of applications such as conference rooms, meeting rooms, classrooms, auditoriums, and training rooms. Additionally, the long lamp life and energy-efficient features make it a cost-effective solution for ongoing use. Whether for business presentations, educational sessions, or professional gatherings, the Maxell MC-WX8265 provides reliable performance and stunning image quality.

6,500 lumens white/color output
WXGA 1280 x 800
1.5 – 3.0:1 (with standard lens)

Projection Technology : 3LCD, 3 chip technology
Resolution : WXGA 1280 x 800
White Light Output : 6,500 ANSI lumens
Color Light Output : 6,500 ANSI lumens
Colors : 16.7 million colors
Aspect Ratio : Native 16:10 / 4:3 and 16:9 compatible
Contrast Ratio : 3000 : 1 (using active IRIS)
Throw Ratio (distance : width) : 1.5 – 3.0 : 1 (with standard lens)
Lens : ff = 24 – 48 mm (with standard lens) x 2.0 motorized zoom, focus & lens shift
Lamp Wattage : 365W
Expected Lamp Life* : Approximately 2,000 hours (standard mode) 2,500 hours (Eco mode)
Expected Filter Life** : Approximately 20,000 hours
Speaker Output : N/A
Keystone : H and V: +/- 35° (with standard lens)
Computer : VGA, SVGA, XGA, WXGA/WXGA+/SXGA/SXGA+/UXGA (compressed), MAC 16"
H-Sync : 31.5 kHz – 106 kHz
V-Sync : 56 Hz – 120 Hz
Composite Video : NTSC,NTSC4.43, PAL, PAL-M, -N, SECAM
Component Video : 480i, 480p, 576i, 720p, 1080i, 1080p
HDMI : 480i, 480p, 576i, 720p, 1080i, 1080p, Computer signal TMDS clock 27 MHz – 150 MHz
Digital Input : HDMI x 2 (HDCP compliant)
Computer Input 1 : 15-pin mini D-sub x 1
Computer Input 2 : BNC x 5
Computer Monitor Output : 15-pin mini D-sub x 1
S-Video Input : Mini DIN 4-pin x 1
Composite Video Input : RCA jack x 1
Component Video Input : RCA jack x 3, 15-pin mini D-sub x 1 (shared with computer In 1) BNC x 3 (shared with computer In 2)
Audio Input : 3.5mm stereo mini jack x 2, RCA jack (L/R) x 1
Audio Output : RCA jack (L/R) x 1
Network (LAN) Wired : RJ-45 port (10 base-T / 100 base-TX)
Network (LAN) Wireless : USB-A, IEEE802.11 b/g/n – optional wireless adapter required
Control Terminals : 9-pin D-sub x 1 (RS-232 control)
Wired Remote Control : 3.5 mm stereo mini jack (IN/OUT)
USB : Type A x 2 (PC-less presentation, wireless adapter) Type B x 1 (USB display or mouse control)
Power Supply : AC100-120V / AC220-240V, 50/60Hz
Power Consumption : 500W
Operating Temperature : 32°F – 113°F (0°C – 45°C)
Dimensions (W x D x H) : 19.6" x 15.6" x 5.3" (without lens)
Weight : Approximately 19.4 lbs.
Approvals : UL 60950-1 / cUL, FCC Part 15 subpart B class A
