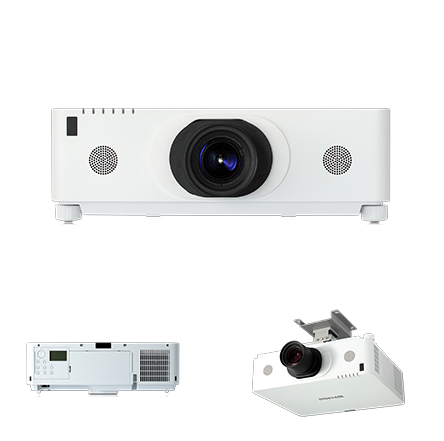

Maxell’s installation-friendly MC-WX8751W LCD projector is
designed to provide maximum presentation impact in mid to
large venue applications. It offers a versatile array of
innovative, performance-enhancing features along with
advanced video display technology providing bold,
brilliant colors with incredible image clarity and
uniformity. The MC-WX8751W incorporates original Maxell
technology Accentualizer, HDCR, Image Optimizer and Color
Management to deliver outstanding picture quality and
visibility. Plus, with motorized zoom, focus and superior
lens shift, a variety of lens options, 360º display
rotation and status monitor, the MC-WX8751W is at the top
of its class when it comes to installation flexibility.
All this, and with a lower cost of ownership. For added
peace of mind, Maxell’s MC-WX8751W is also backed by a
generous warranty and our world-class service and support
programs.
- 7,500 ANSI lumens white/color output
- WUXGA 1920 x 1200
- 1.7 – 3.0 : 1 (distance : width)
-
Projection Technology : 3LCD, 3
chip technology
-
Resolution : WXGA 1280 x 800
-
White Light Output : 7,500 ANSI
lumens
-
Color Light Output : 7,500 ANSI
lumens
-
Colors : 16.7 million colors
-
Aspect Ratio : Native 16:10 /
4:3, 14:9 and 16:9 compatible
-
Contrast Ratio : 10,000 : 1
(using active IRIS)
-
Throw Ratio (distance : width) :
Specifications will vary depending on which lens is used
with the projector
- Display Size : 30" – 600"
-
Lens : Specifications will vary
depending on which lens is used with the projector (This
model ships without a lens)
- Lamp Wattage : 430W
-
Expected Lamp Life* :
Approximately 2,000 hours (standard mode) 4,000 hours
(Eco mode)
-
Expected Filter Life** :
Approximately 20,000 hours
-
Speaker Output : 16W (8W x 2
stereo)
-
Keystone : H and V: +/- 5°
-
Computer : VGA, SVGA, XGA, WXGA,
WXGA+, SXGA, SXGA+, WSXGA+, UXGA, WUXGA, MAC16"
- H-Sync : 15 kHz – 106 kHz
- V-Sync : 50 Hz – 120 Hz
-
Composite Video : NTSC,
NTSC4.43, PAL, PAL-M, -N, SECAM
-
Component Video : 480i, 480p,
576i, 720p, 1080i, 1080p
-
HDMI : 480i, 480p, 576i, 720p,
1080i, 1080p, Computer signal TMDS clock 27 MHz – 150
MHz
-
Digital Input : HDMI x 2,
HDBaseT x 1, Display Port x 1
-
USB : Type A x 1 (wireless
network)
-
Power Supply : AC90-132V /
AC198-264V, 50/60Hz
-
Power Consumption : 580W / 560W
-
Operating Temperature : 32°F –
113°F (0°C – 45°C)
-
Dimensions (W x D x H) : 19.6" x
16.8" x 6.1" (without lens)
-
Weight : Approximately 24.5 lbs.
-
Approvals : UL 60950-1 / cUL,
FCC Part 15 subpart B class A
