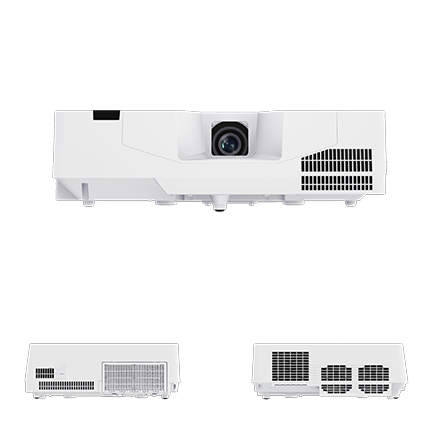

Maxell’s laser light source projector line now includes
the 3LCD model MP-EU5002 with 5,000 ANSI lumens. The new
laser phosphor light source offers approximately 20,000
hours (normal mode) of operation time and is virtually
maintenance free, there is no lamp to replace providing a
dramatic reduction in total cost of ownership. Ideal for
digital signage applications, as well as a perfect choice
for auditoriums, lecture halls, large classrooms,
conference rooms and museums. Plus, 5,000 ANSI lumens
brightness and 500,000 : 1 contrast ratio results in super
bright display with outstanding image clarity and
uniformity. Additionally a suite of advanced features
includes High Dynamic Contrast Range (HDCR2), 3 HDMI
ports, and Maxell’s original technology Accentualizer. As
with all Maxell projectors, you can expect vibrant image
quality, cost-efficient operation, and long-lasting
reliability. For added piece of mind, Maxell’s MP-EU5002
is also backed by a generous 5-year warranty and our
world-class service and support programs.
- 5,000 ANSI Lumens Brightness
- WUXGA 1920 x 1200
- 1.3 – 2.1 : 1 Throw Ratio
-
Projection Technology : 3LCD, 3
chip technology
-
Resolution : WUXGA – 1920 x 1200
-
Brightness : 5,000 ANSI lumens
-
Colors : 1.07 billion colors
-
Aspect Ratio : Native 16:10,
4:3, 16:9, 14:9 and zoom compatible
-
Contrast Ratio : 500,000 : 1
(Dynamic Black on)
-
Focus Distance (distance : width)
: 26" – 533"
-
Display Size (distance : width)
: 30" – 300"
-
Lens : f = 18.2 – 29.4 mm, x 1.6
manual zoom and focus
-
Expected Filter Life** : Approx.
20,000 hours
- Speaker Output : 16W
-
Keystone : H and V: +/- 30°
-
Computer :
VGA/SVGA/XGA/WXGA/SXGA/WXGA/WXGA+/WXGA++/
WSXGA+/HD/UXGA/Mac 16
- H-Sync : 15 kHz – 106 kHz
- V-Sync : 50 Hz – 120 Hz
-
Composite Video : NTSC,
NTSC4.43, PAL, PAL-M, -N, SECAM
-
Component Video : 480i, 480p,
576i, 576p, 720p, 1080i, 1080p
-
HDMI : 480i, 480p, 576i, 576p,
720p, 1080i, 1080p Computer signal TMDS clock 25 MHz –
162 MHz
-
Digital Input : HDMI x 2,
HDMI/MHL x 1 (HDCP compliant)
-
Computer Input 1 : 15-pin mini
D-sub x 1
-
Computer Input 2 : 15-pin mini
D-sub x 1
-
Computer Monitor Output : 15-pin
mini D-sub x 1 (shared with computer in 2)
-
Composite Video Input : RCA jack
x 1
-
Component Video Input : 15-pin
mini D-sub x 2 (shared with computer in 1/2)
-
Audio Input : 3.5 mm stereo mini
jack x 2, RCA jack (L/R) x 1
-
Audio Output : 3.5 mm stereo
mini jack x 1
-
Network (LAN) Wired : RJ-45 port
(10 base-T / 100 base-TX)
-
Network (LAN) Wireless : USB-A,
IEEE802.11 a/b/g/n/ac – optional wireless adapter
required
-
Control Terminals : 9-pin D-sub
x 1 (RS-232 control)
-
Wired Remote Control : 3.5 mm
stereo mini jack (IN/OUT)
-
USB : Type A x 2 (PC less
Presentation or wireless network) Type B x 1 (USB
display or USB mouse control)
-
Power Supply : AC100-120V /
AC220-240V, 50/60Hz
