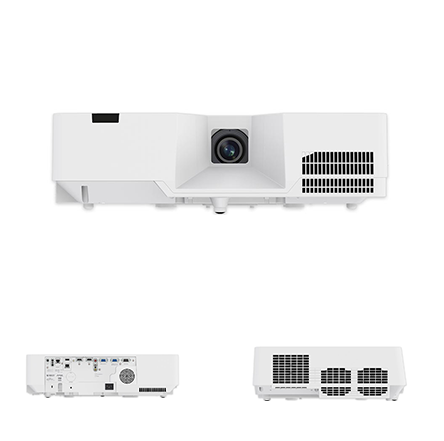

Maxell’s solid state light source projector line now
includes the laser light source 3LCD model MP-WU5503 with
5,000 ANSI lumens. The new laser phosphor light source
offers approximately 20,000 hours (normal mode) of
operation time and is virtually maintenance free, there is
no lamp to replace providing a dramatic reduction in total
cost of ownership. Ideal for digital signage applications,
as well as a perfect choice for auditoriums, lecture
halls, large classrooms, conference rooms and museums.
Plus, 5,000 ANSI lumens brightness and 1,500,000 : 1
contrast ratio results in super bright display with
outstanding image clarity and uniformity. Additionally a
suite of advanced features includes High Dynamic Contrast
Range (HDCR2), 2 HDMI ports, and Maxell's original
technology Accentualizer. As with all Maxell projectors,
you can expect vibrant image quality, cost-efficient
operation, and long-lasting reliability. For added piece
of mind, Maxell’s MP-WU5503 is also backed by a generous
5-year warranty and our world-class service and support
programs.
- 5,000 ANSI Lumens Brightness
- WUXGA 1920 x 1200 Native Resolution
- 1.4 – 2.4 : 1 Throw Ratio
-
Projection Technology : 3LCD, 3
chip technology
-
Resolution : WUXGA – 1920 x 1200
-
Brightness : 5,000 ANSI lumens
-
Colors : 1.07 billion colors
-
Aspect Ratio : Native 16:10,
4:3, 16:9, 14:9 and zoom compatible
-
Contrast Ratio : 1,500,000 : 1
(Dynamic Black on)
-
Focus Distance (distance : width)
: 31" – 619"
-
Display Size (distance : width)
: 30" – 300"
-
Lens : f = 19.8 – 33.9 mm, x 1.7
manual zoom, focus and lens shift
-
Lens Shift : Manual (V: 0 ~
56.5%, H: +/- 4.6%)
-
Expected Filter Life** : Approx.
20,000 hours
- Speaker Output : 16W
-
Keystone : H and V: +/- 30°
-
Computer :
VGA/SVGA/XGA/WXGA/SXGA/WXGA/WXGA+/WXGA++/
WSXGA+/HD/UXGA/Mac 16
- H-Sync : 15 kHz – 106 kHz
- V-Sync : 50 Hz – 120 Hz
-
Composite Video : NTSC,
NTSC4.43, PAL, PAL-M, -N, SECAM
-
Component Video : 480i, 480p,
576i, 576p, 720p, 1080i, 1080p
-
HDMI : 480i, 480p, 576i, 576p,
720p, 1080i, 1080p Computer signal TMDS clock 25 MHz –
162 MHz 4K (3840 x 2160p@24/25/30, 4096 x 2160p@24)*
*HDMI1 and HDBaseT only
-
Digital Input : HDBaseT x 1,
HDMI x 2 (HDCP Compliant)
-
Computer Input 1 : 15-pin mini
D-sub x 11
-
Computer Input 2 : 15-pin mini
D-sub x 1
-
Computer Monitor Output : 15-pin
mini D-sub x 1 (shared with computer in 2)
-
Composite Video Input : RCA jack
x 1
-
Component Video Input : 15-pin
mini D-sub x 2 (shared with computer in 1/2)
-
Audio Input : 3.5mm stereo mini
jack x 2, RCA jack (L/R) x 1
-
Audio Output : 3.5mm stereo mini
jack x 1
-
Network (LAN) Wired : RJ-45 port
(10 base-T / 100 base-TX)
-
Network (LAN) Wireless : USB-A,
IEEE802.11 a/b/g/n/ac – optional wireless adapter
required
-
Control Terminals : 9-pin D-sub
x 1 (RS-232 control)
-
Wired Remote Control : 3.5 mm
stereo mini jack (IN/OUT)
-
USB : Type A x 1 (Wireless
adapter), Type B x 1 (Service)
-
Power Supply : AC100-120V /
AC220-240V, 50/60Hz
-
Power Consumption : 370W/360W
-
Operating Temperature : 32° –
104° (0°C – 40°C) under 5,250 ft. 32° – 95° (0°C – 35°C)
5,250 ft. – 10,000 ft.
-
Dimensions (W x D x H) : 19.9" x
16.7" x 5.3" (excluding protrusions)
-
Weight : Approximately 18.0 lbs.
-
Approvals : UL 60950-1 / cUL,
FCC Part 15 subpart B class A
