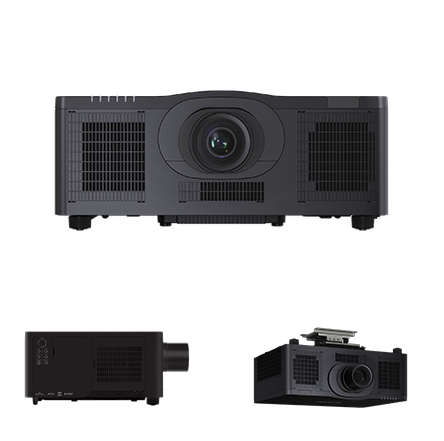

Nedo Corporation presents the Maxell MP-WU8801B, a 3LCD laser light source projector with 8,000 ANSI lumens and a 20,000-hour operating life. Maintenance-free, it eliminates lamp replacements, reducing total cost of ownership. Ideal for digital signage, auditoriums, lecture halls, large classrooms, conference rooms, and museums, it delivers vibrant visuals with a 2,500,000:1 contrast ratio and outstanding clarity. Key features include HDCR2, 3 HDMI ports, and Accentualizer technology. Backed by a 5-year warranty and Maxell’s world-class support, the MP-WU8801B offers cost-efficient operation and long-lasting reliability.
- 8,000 ANSI Lumens Brightness
- WUXGA 1920 x 1200
-
Specifications will vary depending on which lens is used
with the projector (1.7 – 2.9 : 1 with standard lens
ML713)
-
Projection Technology : 3LCD, 3
chip technology
-
Resolution : WUXGA 1920 x 1200
- Brightness; : 8,000 ANSI lumens
-
Colors : 10.7 billion colors
-
Aspect Ratio : Native 4:3, 16:9,
16:10, 14:9 and zoom compatible
-
Contrast Ratio : 2,500,000 :
-
Throw Ratio (distance : width) :
Specifications will vary depending on which lens is used
with the projector (1.7 – 2.9 : 1 with standard lens
ML713)
-
Focus Distance : 71" – 1256"
(with SD903 lens)
-
Display Size : 30" – 600" (100"
– 350" with FL720, 60" – 600" with USL701)
- HDBaseT : RJ45 port x 1
-
USB : Type A x 1 (wireless
network)
-
Control Terminals : 9-pin D-sub
x 1 (RS-232 control)
-
Power Supply : AC100-120V /
AC220-240V, 50/60Hz
-
Power Consumption : 580W/560W
-
Operating Temperature : 32°F –
104° F (0°C – 40°C)
-
Dimensions (W x D x H) : 22.9" x
16.9" x 8.5" (excluding protrusions)
-
Weight : Approximately 40.3 lbs.
-
Approvals (W x D x H) : UL
60950-1 / cUL, FCC Part 15 subpart B class A
