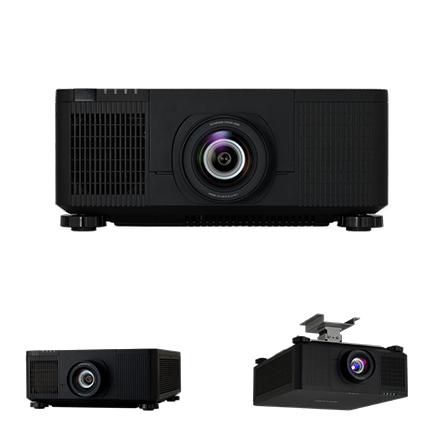

Maxell is proud to introduce the MP-WU9101B, our first 10,000 lumen laser light source projector. With a maintenance-free design and up to 20,000 hours of operation, it eliminates the need for lamp or filter replacements, reducing total cost of ownership. Ideal for large auditoriums, conference rooms, museums, and stage productions, it delivers 10,000 ANSI lumens brightness and a 30,000:1 contrast ratio for exceptional clarity. The HDBaseT™ feature allows uncompressed HD content distribution over a single cable, simplifying installation. Backed by a 5-year warranty and world-class support, the MP-WU9101B provides reliable, large-scale performance for any environment.
- 10,000 ANSI Lumens Brightness
- WUXGA 1920 x 1200
-
Specifications will vary depending on which lens is used
with the projector
-
Projection Technology : Single
Chip DLP
-
Resolution : WUXGA 1920 x 1200
- Brightness; : 10,000 ANSI lumens
-
Colors : 1.07 billion colors
-
Aspect Ratio : Native 16:10,
4:3, 16:9, and zoom compatible
-
Contrast Ratio : 30000 : 1
-
Throw Ratio (distance : width) :
Specifications will vary depending on which lens is used
with the projector
-
Focus Distance : 71" – 1256"
(with SD903 lens)
- HDBaseT : RJ-45 jack x 1
-
Wired Remote Control : 3.5 mm
stereo mini jack
-
Control Terminals : 9-pin D-sub
x 1 (RS-232 control)
-
Power Supply : AC 100-130V / AC
220 -240V, 50-60HZ
-
Power Consumption : 1340W /
1240W
-
Operating Temperature : 32°F –
113°F (0°C – 45°C)
-
Dimensions (W x D x H) : 19.7" x
22.7" x 8.5"
-
Weight : Approximately 61.7 lbs.
-
Approvals : UL 60950-1 / cUL,
FCC Part 15 subpart B class A
