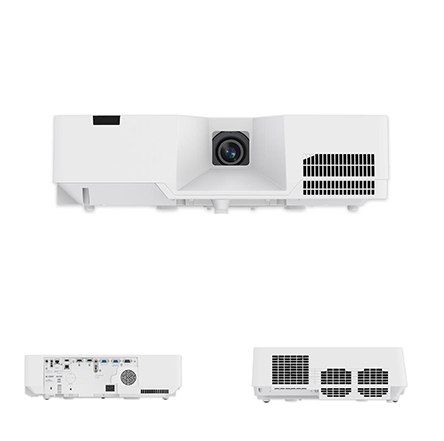

Maxell MP-WX5603

Maxell’s solid state light source projector line now includes the laser light source 3LCD model MP-WX5603 with 6,000 ANSI lumens. The new laser phosphor light source offers approximately 20,000 hours (normal mode) of operation time and is virtually maintenance free, there is no lamp to replace providing a dramatic reduction in total cost of ownership. Ideal for digital signage applications, as well as a perfect choice for auditoriums, lecture halls, large classrooms, conference rooms and museums. Plus, 6,000 ANSI lumens brightness and 1,500,000 : 1 contrast ratio results in super bright display with outstanding image clarity and uniformity. Additionally a suite of advanced features includes High Dynamic Contrast Range (HDCR2), 2 HDMI ports, and Maxell’s original technology Accentualizer. As with all Maxell projectors, you can expect vibrant image quality, cost-efficient operation, and long-lasting reliability. For added piece of mind, Maxell’s MP-WX5603 is also backed by a generous 5-year warranty and our world-class service and support programs.

6,000 ANSI Lumens Brightness
WXGA (1280 x 800) Native Resolution
1.3 – 2.1 : 1 Throw Ratio

Projection Technology : 3LCD, 3 chip technology
Resolution : WUXGA – 1920 x 1200
Brightness : 6,000 ANSI lumens
Colors : 1.07 billion colors
Aspect Ratio : Native 16:10, 4:3, 16:9, 14:9 and zoom compatible
Contrast Ratio : 1,500,000 : 1 (Dynamic Black on)
Focus Distance (distance : width) : 27" – 534"
Display Size (distance : width) : 30" – 300"
Lens : f = 18.2 – 29.2 mm, x 1.6 manual zoom, focus and lens shift
Lens Shift : Manual (V: 0 ~ 56.5%, H: +/- 4.6%)
Expected Filter Life** : Approx. 20,000 hours
Speaker Output : 16W
Keystone : H and V: +/- 30°
Computer : VGA/SVGA/XGA/WXGA/SXGA/WXGA/WXGA+/WXGA++/ WSXGA+/HD/UXGA/Mac 16
H-Sync : 15 kHz – 106 kHz
V-Sync : 50 Hz – 120 Hz
Composite Video : NTSC, NTSC4.43, PAL, PAL-M, -N, SECAM
Component Video : 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
HDMI : 480i, 480p, 576i, 576p, 720p, 1080i, 1080p Computer signal TMDS clock 25 MHz – 162 MHz 4K (3840 x 2160p@24/25/30, 4096 x 2160p@24)* *HDMI1 and HDBaseT only
Digital Input : HDBaseT x 1, HDMI x 2 (HDCP Compliant)
Computer Input 1 : 15-pin mini D-sub x 11
Computer Input 2 : 15-pin mini D-sub x 1
Computer Monitor Output : 15-pin mini D-sub x 1
Composite Video Input : RCA jack x 1
Component Video Input : 15-pin mini D-sub x 2 (shared with computer in 1/2)
Audio Input : 3.5mm stereo mini jack x 2, RCA jack (L/R) x 1
Audio Output : 3.5mm stereo mini jack x 1
Network (LAN) Wired : RJ-45 port (10 base-T / 100 base-TX)
Network (LAN) Wireless : UUSB-A, IEEE802.11 a/b/g/n/ac – optional wireless adapter required
Control Terminals : 9-pin D-sub x 1 (RS-232 control)
Wired Remote Control : 3.5 mm stereo mini jack (IN/OUT)
USB : Type A x 1 (Wireless adapter), Type B x 1 (Service)
Power Supply : AC100-120V / AC220-240V, 50/60Hz
Power Consumption : 420W/400W
Operating Temperature : 32° – 104° (0°C – 40°C) under 5,250 ft. 32° – 95° (0°C – 35°C) 5,250 ft. – 10,000 ft.
Dimensions (W x D x H) : 19.9" x 16.7" x 5.3" (excluding protrusions)
Weight : Approximately 18.1 lbs.
Approvals : UL 60950-1 / cUL, FCC Part 15 subpart B class A
