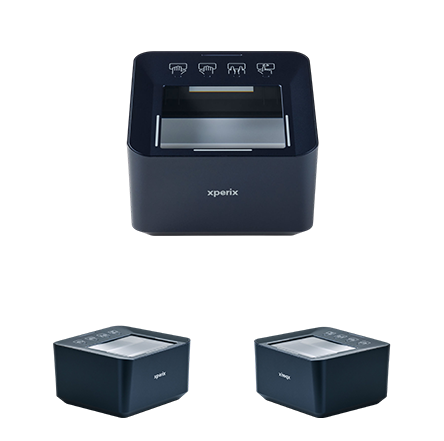

The Xperix RealScan SG10 FAP 60 Fingerprint Scanner is an ultra-compact optical live fingerprint scanner designed for reliable biometric enrollment and identification. It captures flat and rolled fingerprints at 500 ppi resolution and features FBI Appendix F and Mobile ID FAP 60 certification. Moreover, its AI-based live finger detection supports ISO/IEC 30107-3 compliant PAD Level 1 and Level 2 for enhanced security. With USB 3.2 Gen 1, USB-C connectivity, IP65 protection, and plug-and-play functionality, it offers flexible integration. The scanner supports Windows, Linux, and Android for use in mobile enrollment kits, kiosks, and eGate systems. Nedo Corporation provides Xperix RealScan SG10 biometric fingerprint scanners in Pakistan for organizations requiring reliable fingerprint scanning solutions.
- Portability with Ultra-compact design
- Plug & Play
- Flexibility in Hardware Design
- Ease of Integration
-
Faster Data Transfer with USB 3.2 Gen 1
-
Simplified Development with SDK
-
Support complex and data-intensive applications
-
Enhanced Security
-
Fraud Prevention with PAD Level 1 & 2 standards
- Fingerprint Type : Flat(Four/Two/Single) and
Rolled(Single) fingers
- Sensor Type : Optical
- Resolution : 500 pp
- Image Gray Scale : 8-bit, 256 levels
- Image Size (WxL) : Four finger slap: 1600 x 1500 pixels,
Two finger flat: 900 x 900 pixels, Single flat / Roll: 800 x 750 pixels
- Template Format : Xperix, ISO 19794-2, ANSI 378 by Image
SDK
- Supported Image Formats : RAW, BMP, WSQ, JPEG2000, ISO
19794-4
- Encryption : AES-256 by Image SDK
- OS Support : Windows, Linux, and Android
- Platen Size (WxL) : 89 mm x 80 mm
- Sensing Area (WxL) : 81.3 mm x 76.2 mm
- Dimensions (WxLxH) : 129.5 mm x 137.5 mm x 80 mm
- Ingress Protection : IP65 (Sealed between bezel and sensor
surface)
- Interface : USB 3.2 Gen 1, USB-C
- Liveness Detection : Supported (ISO/IEC 30107-3 PAD Level
1 & 2)
- Sound : Speaker
- Weight : 1.35 kg
