Sokkia DT-50 Series Total Station in Pakistan - DT-950G Automatic Levels


Sokkia DT-50 Series Total Station in Pakistan - DT-950G Automatic Levels

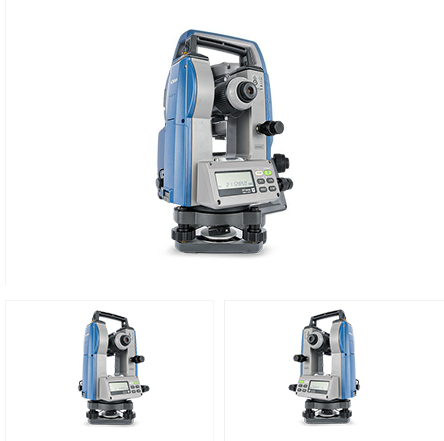

With our DT950G you'll be up and working fast, thanks to its simple interface and large, easy-to-see backlit LCD. There's an optical plummet that makes set up over a control point easy, and a tilt sensor that provides ±3 minute angle correction. With a range of angular accuracies available, this Sokkia theodolite delivers precision, durability, and advanced technology to help you finish the job with confidence. The Sokkia DT50 is a lightweight, compact alignment and angular measurement device which boasts up to 30 workdays of power; the highest water and dust protection in its category; and convenient, high-precision laser guidance.


  • Length   :   149 mm
  • Aperture   :   45mm
  • Magnification   :   50X
  • Field of view   :   1°30‘ (26 m/1,000 m)
  • Minimum focus   :   0.9 m
  • Method   :   Rotary absolute encodes
  • Minimum display   :   10" (0.002 gon/0.05 mil)/ 20" (0.005 gon/0.1 mil) (selectable)
  • Accuracy   :   9"
  • Unit   :   1 sides
  • Magnification   :   3X
  • Operating temperature range   :   -20 to 50°C (-4 to 122°F)
  • Dust and water protection   :   IP66 (IEC 60529: 2001)
  • Theodolite only   :   about 250 hours
  • Size (with handle)   :   173 (D) X 174 (W) X 318 (H) mm (Display on one side)
  • Weight   :   4.0 kg (8.82 lb) (with batteries and battery holder)

Sokkia DT-950G

Data Sheet
