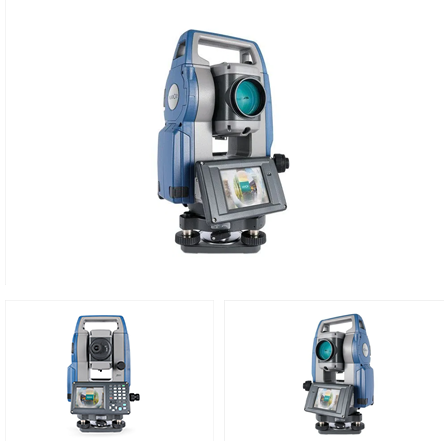

The FX-202 total station is fast and accurate with onboard
MAGNET software and a ruggedized rain-proof design used by
surveyors around the globe. The FX-202 replaces the FX-100
that was launched in 2012. The FX-202 total station has a
more accurate and longer distance EDM range, an improved
power system, and a faster boot up speed so you can get
straight to work.
-
Magnification / Resolving power
: 30x / 2.5"
-
Objective aperture : 45mm
(1.8in.) (48mm (1.9in.) for EDM)
-
Field of view : 1°30'
(26m/1,000m)
-
Reticle illumination : 5
brightness levels
-
Display resolution : 0.5" / 1"
(0.0001 / 0.0002gon, 0.002 / 0.005mil)
-
Accuracy (ISO 17123-3:2001) : 2"
-
Dual-axis compensator / Collimation compensation
: Dual-axis liquid tilt sensor,
working range: ±6' (±111mgon) / Collimation compensation
available
-
Laser output*1 : Reflectorless
mode: Class 3R / Prism/sheet mode: Class 1
-
Measuring time* : Fine: 0.9s
(initial 1.5s), Rapid: 0.6s (initial 1.3s), Tracking:
0.4s (initial 1.3s)
-
Operating system : Windows
Embedded Compact7
-
Display / Keyboard : 3.5inch,
Transmissive TFT QVGA color LCD with LED backlight,
Touch screen, Automatic brightness control / 29 keys
with backlight
-
Control panel location : On both
faces (Face 2 is only touch screen display )
-
Guide light : Green LED (524nm)
and Red LED (626nm), Operating range: 1.3 to 150m (4.3
to 490ft.)
-
Laser-pointer : On both faces
(Face 2 is only touch screen display )
-
Optical plummet : Magnification:
3x, Minimum focus: 0.3m (11.8in.) from tribrach bottom
-
Dust and water protection : IP65
(IEC 60529:2001)
-
Operating temperature : -20 to
60° C (-4 to 140°F)
-
Size (with handle) :
191(W)x190(D)x348(H)mm
-
Weight with battery & tribrach :
Approx. 5.7kg (12.3 lb.)
-
Battery : Li-ion rechargeable
battery
