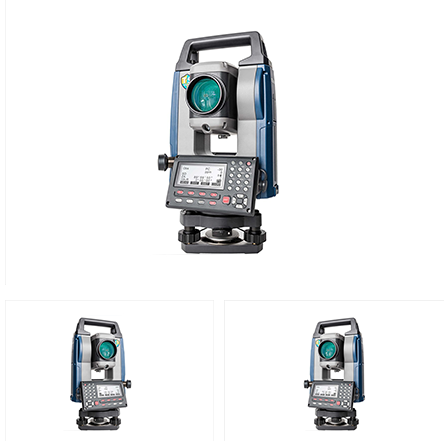

The iM-102 (Intelligent Measurement Total Station)
incorporates all the features you need at a cost-efficient
price. It will handle your most demanding survey layout or
as-built project needs. You get fast, accurate, and
powerful EDM technology, best-in-class accuracy up to
5,000 m with a prism and up to 800 m in reflectorless
mode, and a battery life of up to 28 hours. The iM-102
series is ready to be your hardest worker out in the
field.
-
Magnification / Resolving power
: 30x / 2.5"
-
Objective aperture : 45mm
(1.8in.) (48mm (1.9in.) for EDM)
-
Field of view : 1°30'
(26m/1,000m)
-
Reticle illumination : 5
brightness levels
-
Minimum Display : 1"/5" (0.0002
/ 0.001gon, 0.005 / 0.02mil)
-
Accuracy (ISO 17123-3:2001) : 2"
-
Dual-axis compensator / Collimation compensation
: Dual-axis liquid tilt sensor,
working range: ±6' (±111mgon) / Collimation compensation
available
-
Laser output : Reflectorless
mode: Class 3R / Prism/sheet mode: Class 1
-
Measuring time* : Fine: 0.9s
(initial 1.5s), Rapid: 0.6s (initial 1.3s), Tracking:
0.4s (initial 1.3s)
- Operating system : Linux
-
Display / Keyboard : Graphic
LCD, 192 x 80 dots, backlight, contrast adjustment /
Alphanumeric keyboard / 28 keys with backlight
-
Control panel location : On both
faces (Face 2 is only touch screen display )
-
Guide light : Green LED (524nm)
and Red LED (626nm), Operating range: 1.3 to 150m (4.3
to 490ft.)
-
Laser-pointer : On both faces
-
Optical plummet : Magnification:
3x, Minimum focus: 0.3m (11.8in.) from tribrach bottom
-
Dust and water protection / Operating temperature
: IP66 (IEC 60529:2001) / -20 to
+60ºC (-4 to +140ºF
-
Size (with handle) : 183(W)x
181(D)x 348(H)mm
-
Weight with battery & tribrach :
Approx. 5.3kg (11.7lb)
-
Battery : Li-ion rechargeable
battery BDC70
