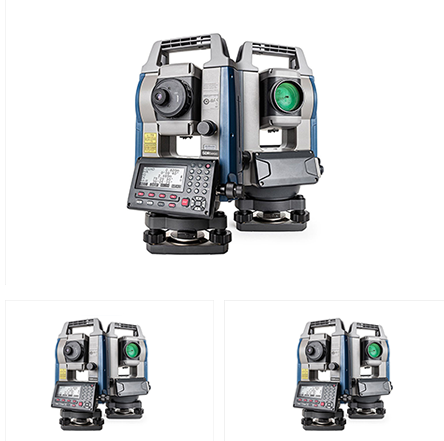

The iM-52 Series is the perfect entry-level site layout
and survey tool offering reliability and flexibility
without sacrificing cost or functionality. The sleek
design is built tough, with a water and dustproof IP66
rating, integrated Bluetooth® capability and an internal
antenna, enabling you to deliver measurements cable-free
to your data controller, streamlining your equipment
weight and workflow. The iM-52 series is also armed with a
top line EDM, generous internal memory storage, and
SDRbasic on-board software so you have everything you need
to get the job done out in the field.
-
Objective aperture : 45mm
(1.8in.)
-
Field of view : 1°30'
(26m/1,000m
-
Magnification / Resolving power
: 30x / 2.5"
-
Minimum Display : 1"/5" (0.0002
/ 0.001gon, 0.005 / 0.02mil)
-
Accuracy (ISO 17123-3:2001) : 2"
-
Dual-axis compensator / Collimation compensation
: Dual-axis liquid tilt sensor,
working range: ±6'
-
Laser output : Reflectorless
mode : Class 3R / Prism/sheet mode : Class 1
-
Measuring time* : Fine: 0.9s
(initial 1.5s), Rapid: 0.6s (initial 1.3s), Tracking:
0.4s (initial 1.3s)
- Operating system : Linux
-
Display / Keyboard : Graphic
LCD, 192 x 80 dots, backlight : on/off (Selectable) /
Alphanumeric keyboard / 28 keys with backlight
-
Control panel location : On both
faces
-
Laser-pointer : Coaxial red
laser using EDM beam
-
Optical plummet : Magnification:
3x, Minimum focus: 0.5m (19.7in.) from tribrach bottom
-
Dust and water protection : IP66
(IEC 60529:2001) / -20 to +60ºC (-4 to +140ºF)
-
Instrument height : 192.5mm from
tribrach mounting surface
-
Size (with handle) : 183(W)x
181(D)x 348(H)mm (On both faces)
-
Weight with battery & tribrach :
Approx. 5.1kg (11.3lb)
-
Battery : Li-ion rechargeable
battery BDC46C
